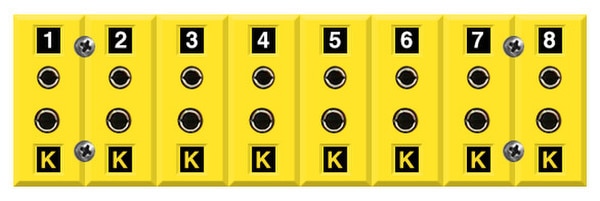

๐ก Type K 8-Circuit Jack Panel
This large Type K thermocouple jack panel provides a centralized connection point for eight independent Type K thermocouple circuits. The full-size 2-pole jack configuration maintains proper Chromel (+) / Alumel (-) connections while providing convenient sensor-to-instrument access for multi-point temperature monitoring systems.
Designed for panel mounting and temperatures up to 400ยฐF (205ยฐC), it is well suited for industrial equipment, laboratories, test systems, and custom instrumentation panels.
TO ORDER Other Strippanel Configurations:
- Give Strippanel No. [e.g. 1032]
- Specify Number of circuits [e.g. 1032-8]
- Specify Thermocouple Type by Code [e.g. 1032-8-K]
- For vertical rows add suffix "V" [e.g. 1032-8-K-V]
- For Hi-Temp Stripanel [e.g. 1132-8-K]
- Availabie Thermocouple Types: J,K,T,N,E,R,S,U, also "C"
- Gold plated inserts are available. Use suffix "G" [e.g. 1032-6-K-G]

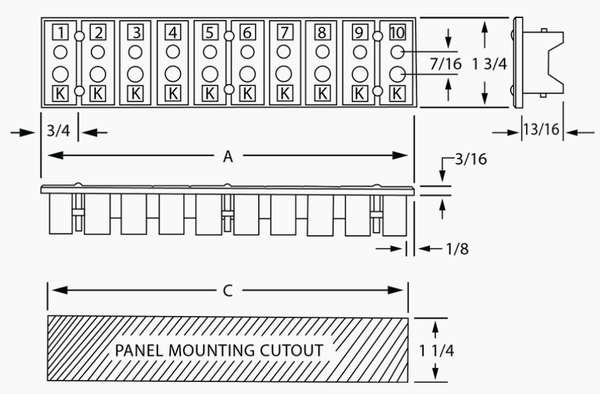

| Number of Circuits | "A" Dimension Panel Length | "C" Dimension Cutout Length | Full Size 2-Pole Panel Part No. | Hi-Temp Full Size 2-Pole Panel Part No. |
|---|---|---|---|---|
| 2 | 1 1/2" | 1 5/16" | 1032-2-K | 1132-2-K |
| 3 | 2 1/4" | 2 1/16" | 1032-3-K | 1132-3-K |
| 4 | 3" | 2 13/16" | 1032-4-K | 1132-4-K |
| 5 | 3 3/4" | 3 9/16" (84mm) | 1032-5-K | 1132-5-K |
| 6 | 4 1/2" | 4 5/16" | 1032-6-K | 1132-6-K |
| 7 | 5 1/4" | 5 1/16" | 1032-7-K | 1132-7-K |
| 8 | 6" | 5 13/16" | 1032-8-K | 1132-8-K |
| 9 | 6 3/4" | 6 9/16" | 1032-9-K | 1132-9-K |
| 10 | 7 1/2" | 7 5/16" | 1032-10-K | 1132-10-K |
| 11 | 8 1/4" | 8 1/16" | 1032-11-K | 1132-11-K |
| 12 | 9" | 8 13/16" | 1032-12-K | 1132-12-K |
- 8 Circuit K Thermocouple Jack Panel
- Expert Technical Support
Compliance & Risk Mitigation
๐ก Maintains Type K alloy compatibility
๐งฎ Organizes eight independent TC circuits
๐ Helps reduce connection wiring errors
๐ Supports clear circuit identification
๐ก Supports temperature signal integrity
๐ Simplifies service and sensor changes
Use only with compatible Type K thermocouples, extension wire, and connectors. Verify polarity, panel cutout dimensions, wiring, mounting, and operating temperature before installation. Do not exceed the 400ยฐF (205ยฐC) maximum temperature rating.
โโโโโโโโโโโโโโโโโโโโโโโโโโ
Ideal Applications
๐ญ Industrial temperature monitoring
๐งช Laboratory and test equipment
โ๏ธ Multi-zone process equipment
๐งฎ Multi-point temperature systems
๐ Data acquisition installations
๐ Sensor-to-instrument connections
๐ ๏ธ Custom control and instrument panels
โโโโโโโโโโโโโโโโโโโโโโโโโโ
