Thermocouple Stripanel Full-Size 3-Pole
Connector & Stripanels-Full-Size, 3-Pole Stripanels

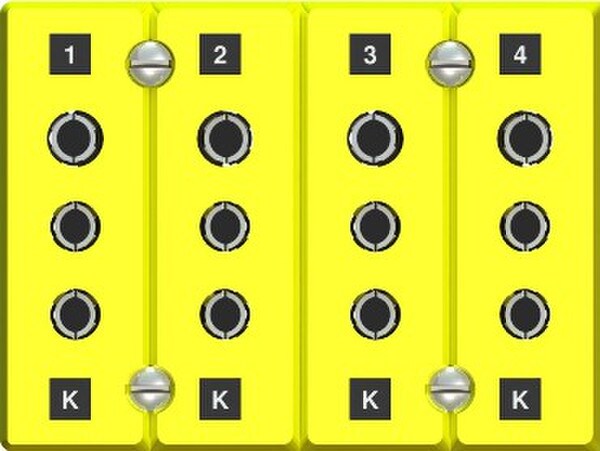

MARACC049 Product Shown 1034-4-K
TO Customize this item:
- Give Stripanel No. [e.g. 1034]
- Specify Number of circuits [e.g. 1034-8]
- Specify Thermocouple Type by Code [e.g. 1034-8-K]
- For vertical rows add suffix "V" [e.g. 1034-8-K-V]
- For Hi-Temp Stripanel [e.g. 1134-8-K]
- Availability: J,K,T,N,E,R,S,U, also "C"
- Gold plated inserts are available. Use suffix "G" [e.g. 1034-8-K-G]
| Number of Circuits | "A" Dimension Panel Length | "C" Dimension Cutout Length | Full Size 3-Pole Panel Part No. | Hi-Temp Full Size 3-Pole Panel Part No. |
|---|---|---|---|---|
| 2 | 1 1/2" | 1 5/16" | 1034-2-K | 1134-2-K |
| 4 | 3" | 2 13/16" | 1034-4-K | 1134-4-K |
| 6 | 4 1/2" | 4 5/16" | 1034-6-K | 1134-6-K |
| 8 | 6" | 5 13/16" | 1034-8-K | 1134-8-K |
| 10 | 7 1/2" | 7 5/16" | 1034-10-K | 1134-10-K |
| 12 | 9" | 8 13/16" | 1034-12-K | 1134-12-K |
3-pole thermocouple connectors provide a shield terminal that maintains the shield circuit from metal sheathed thermocouples to extension wires or from wire to wire hook-ups. Grounding must be done at one point and only one point.
400°F (205°C) Continuous and 500°F (260°C) Intermittent.
400°F (205°C) Continuous and 500°F (260°C) Intermittent.
