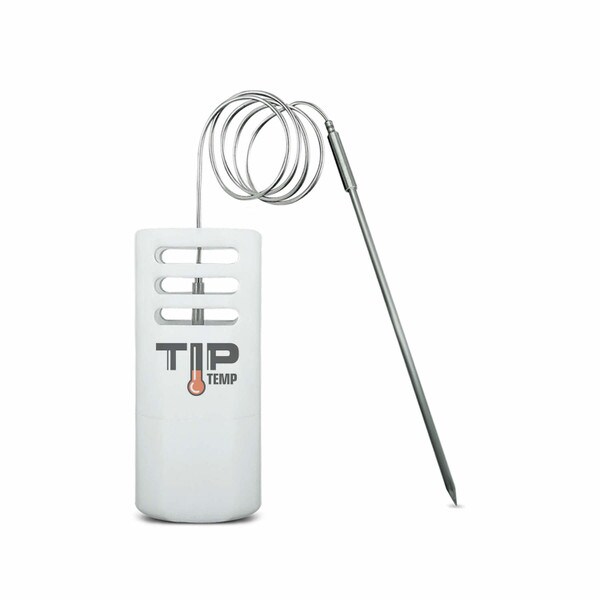

Temperature Data Logger w/ Vented Thermal Shield

(0)No Reviews yet
Provided: Each
-200°C ~ 260°C (-328°F ~ 500°F)
316SS 5" Probe, 24" Flexible Cable ( See Additional Options Below )
Submersible WaterProof

Notable Features

The MATREC124 is a kit that includes a MATREC123 data logger housed in a Teflon Thermal Shield. The combined features of the +/-0.1°C accuracy of the MATREC123 and the properties of the durable thermal shield allow the device to be used for a wide range of validation applications. The built in 24” RTD probe can be bent or spiraled in any direction, making it easy to log temperatures in hard to reach places. This rugged system can be placed in and withstand temperatures from -200°C to 250°C, making it ideal for use in autoclave validation, monitoring food processing and dishwasher testing. Using the included free software, the data logger is fast and easy to setup. Remove the thermal shield and place the data logger into the IFC400 docking station (sold separately). Using the software, an immediate or delay start can be chosen, as well as the reading rate. Start the data logger and place the thermal shield around the instrument. The device is ready to be deployed. The MATREC124 can be completely submerged and is built for applications that require extreme temperature monitoring.

Type of Sensor: RTD
Temperature Sensing Range: -200 °C to +260 °C (-328 °F to +500 °F)
Operating Temperature Range: Body of Logger Cannot Exceed 140 °C
Temperature Accuracy: ±0.1 °C/±0.18 °F (20 °C to +140 °C/68 °F to +284 °F), ±0.3 °C/±0.54 °F (-20 °C to +19.99 °C/-4 °F to +67.98 °F), ±0.4 °C/±0.72 ºF (-40 °C to -20.01 °C/-40 °F to +-4.02 °F)
Temperature Resolution: 0.01°
Temperature Scale: °F or °C
Sensor Wire Length: 24"
Min/Max Memory: Yes
Dimensions: 1.75 in x 0.97 in dia. (45 mm x 25 mm dia.)
Calibration Available: Yes (included)
Special Notes: Approvals: CE
Data Points: 65,536
Exportable Data: Yes
Recording Rate: Once Every Second to Once Every 24 Hours
Display: None
Requires Software: Yes, MITACC110 Interface and Software Package
Software Type: Windows
  • Extreme High Temperature Data Logger with Vented Thermal Shield and 24" Flexible Cable w/ 5" 316SS Probe
  • Battery
  • Software (Free Download)
  • Expert Technical Support
