Extreme High Temp Logger w/ Shield

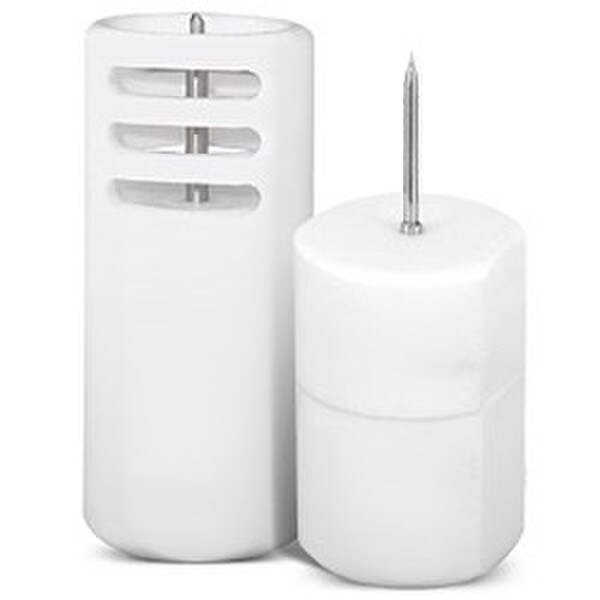

The MATREC125 is a kit that includes a MATREC122 data logger housed in a thermal shield. The combined features of the ±0.1°C accuracy of the data logger and the properties of the durable thermal shield allow the device to be used for a wide range of validation applications. This rugged system can be placed in and withstand temperatures from -200°C to 250°C, making it ideal for use in autoclave validation, monitoring food processing and dishwasher testing. Using the included free software, the data logger is fast and easy to setup. Remove the thermal shield and place the data logger into the IFC400 docking station (sold separately). Using the software, an immediate or delay start can be chosen, as well as the reading rate. Select Start to program the settings and start the data logger. Place the thermal shield around the data logger and screw it back together. The device is ready to be deployed. The MATREC125 can be completely submerged and is built for applications that require extreme temperature monitoring.
- Temperature Sensor: 100Ω platinum RTD
- Temperature Range: –200 to +260°C
- Temperature Resolution: 0.01°C
- Temperature Accuracy:
- ±0.1ºC/±0.18ºF (20ºC to +140ºC/68ºF to +284ºF)
- ±0.3°C/±0.54ºF (-20°C to +19.99°C/-4°F to +67.98°F)
- Memory: 32,700
- Sample Rate: 1 second to 24 hours
- Baud Rate: 125,000
- Typical Battery Life: 1 year (1 minute reading rate at 25°C/77°F)
- Operating Environment: –20 to +140°C, 0 to 100%RH
- Material (Data Logger): 316 stainless steel, (Thermal Shield): PTFE
- Dimensions (Body): 2.7” x 0.97” dia. (67mm x 25mm dia.)
- 5.25" Probe Length
- Dimensions (Shield):
- (Flush Top): 2.75” x 2.0” dia. (69.85mm x 51mm dia.)
- (Vented Top): 4.3” x 2.0”dia. (109.2mm x 51mm dia.)
- Submersible
- Extreme High Temperature Data Logger with Thermal Shield with 5.25" Probe
- Battery
- Expert Technical Support
