Intrinsically safe, Temp/rH Data Logger.

(0)No Reviews yet
-40°F ~ 176°F ( -40°C ~ 80 °C)
Flush Cap is Standard
Optional Key Ring End Cap

Notable Features

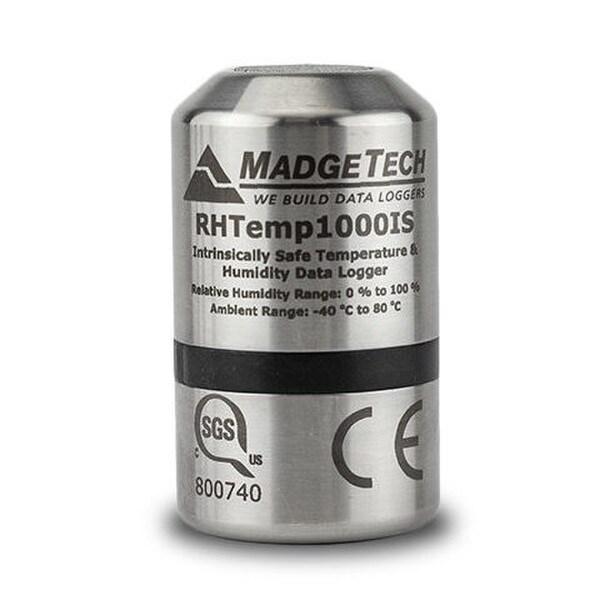

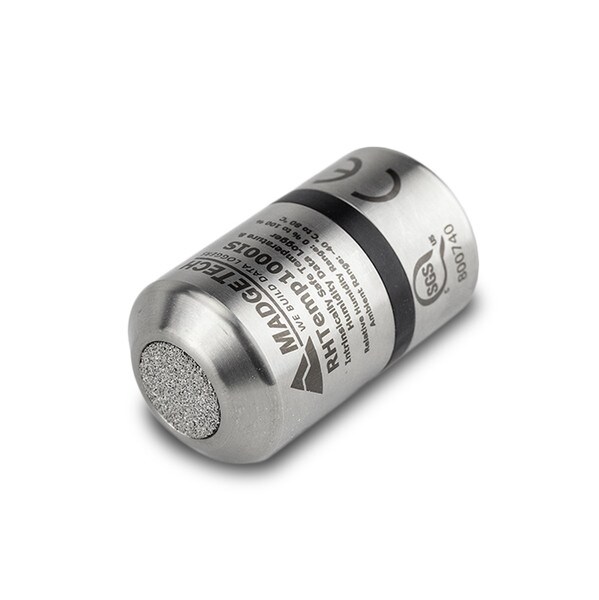

The RHTemp1000IS is a compact, humidity and temperature logger that is SGS approved as intrinsically safe for hazardous environments.

This device measures and records temperatures from -40 °C to +80 °C (-40 °F to +176 °F) with an accuracy of ±0.5 °C. The RHTemp1000IS can store up to 32,768 time and date stamped readings, and is able to be programmed to start up to 24 months in advance.

The RHTemp1000IS is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Memory32,768 readings per channel
Reading Rate1 reading every second up to 1 reading every 24 hours
Battery Life2 years typical at 15 minute reading rate
Material316 Stainless Steel/Radel
Dimensions1.67 in x 0.97 in dia. (42.3 mm x 24.6 mm dia.)
Key Ring End CapKey ring replaces standard bottom
Thru-hole: 0.150"
Operating Environment-40 ºC to +80 ºC (-40 °F to +176 °F)
0 %RH to 100 %RH (case properly sealed)
Required Interface PackageIFC400 or IFC406
FM Class 3600, latest revision
FM Class 3610, latest revision
