🧰 Contact-Type Float Level Switch
✅ Provides reliable contact closure for level alarms
✅ Can be configured for high- or low-level detection
✅ Simple hardwired integration with alarms or controllers
✅ Compact plastic housing for tight installations
✅ Ideal for tanks, reservoirs, sumps, and process vessels
✅ Suitable for monitoring non-hazardous liquids

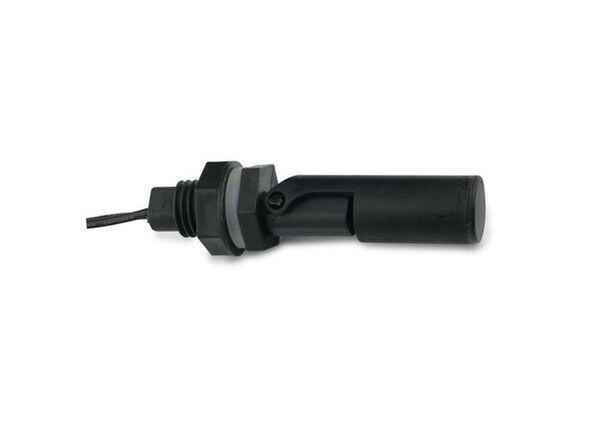

The SNPSEN015 float switch is a plastic side mounted float switch. It is cost effective for level control applications in small tanks where it is more convenient to install a level switch through the sidewall of the tank. This style float switch can be rotated for Normally Open or Normally Closed operation. Combine two switches at different levels for high and low level or pump control or alarming.
- Part Number SNPSEN015
- Operating Temperature: -10°F to 80°F (-23°C to 26°C)
- Contact Rating: 50W
- Max Switch Volt: 100VDC
- Connection: Hardwired
- Housing: Plastic
- Dimensions: 3.5 x 1.5" (89 x 38mm)
- Instruction Manual (Download)
- Contact Type Float Level Switch
