4 Channel Phone Dialer Temp Alarm

(0)No Reviews yet
Provided: Each
-20°F ~ 150°F (–30°C ~ 65°C)
Set-Up Each Channel for Temperature or Contact Closure
  • Built-In Ambient Temperature Sensor.
  • Calls up to 4 phone numbers
  • Programmable Temperature Alarm between -20°F ~ 150°F (–30°C ~ 65°C)
  • Call in for Current Temp, Power Conditions, and listen to room audio sounds
  • Replaces RELALM001 & CNPREC001
Requires (6) "D" Batteries for Battery Back-Up


Current Stock: 1

Notable Features

For use with Food or Medical refrigerators, property owners, computer rooms and more, the ALL NEW Model 400 offers an easy, inexpensive way to monitor a remote facility. It can be installed in any clean indoor environment to monitor a variety of applications.

The 400 has a built-in ability to monitor for power failures and to listen to the sound of a smoke detector. There are also four external inputs that can be connected to a variety of sensors to monitor temperature, water on the floor, humidity, and much more. One of the four external inputs already comes with a temperature sensor for monitoring room temperature only. For refrigerator/freezer applications it is recommended to use (2) sensors known as (SNPSEN002) and the related plastic vial with glass beads (MITACC026P01) to buffer the temperature.

  • Part Number: SNPALM001
  • Size: 71/2" W 2" H 81/2" D

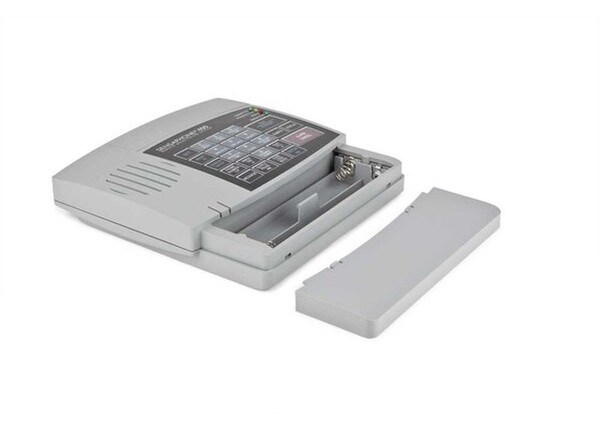

  • Batteries: (6) 1.5 Volt "C" cell alkaline (not included).
  • RJ-11 plug-in modular connector 6' PVC Cable
  • Operating Temperature Range: Keep the Unit between 32°F ~ 120°F
  • Remote Sensor Range: -20° ~ 150°F ( -30° ~ 65°C )
  • Inputs: 4 N/O - N/C dry Contact or 4 Temperature

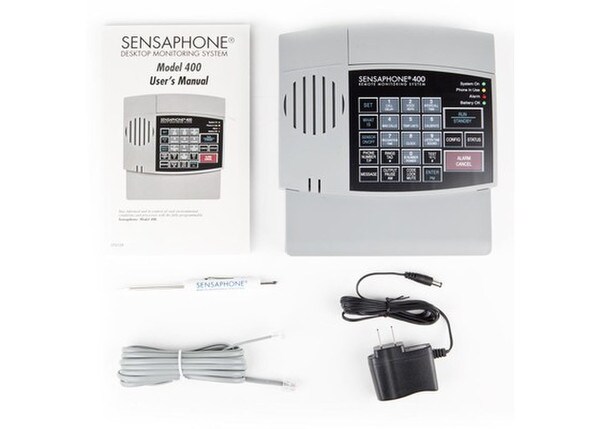

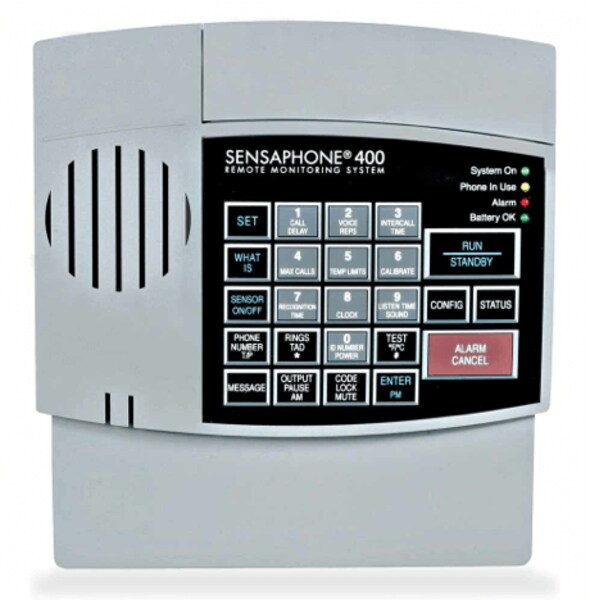

  • SNPALM001 Model 400 Phone Dialer

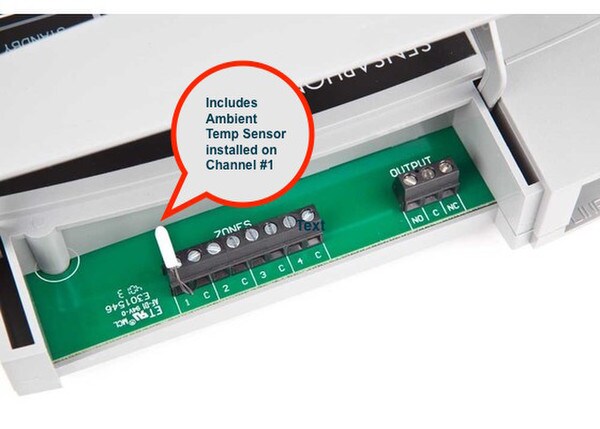

  • Ambient Temperature Sensor ( attached to Input #1, see image above )
  • Instructions & Power Supply ( Batteries Purchased Separately )
  • RJ-11 Telephone Cord
  • Expert Technical Support
  • When an alarm is detected, the Model 400 can notify up to four people by making voice phone calls. Need More Inputs? or Need to contact more people? ( View the Model 800 SNPALM002.) The Model 400 will continue to make phone calls until someone responds to the call. The voice messages can be custom recorded, so you get to describe each alarm message that it speaks in your own voice. The phone interface includes a line seize feature so that extension phones are automatically disconnected when it needs to make an alarm phone call.

    A built-in output relay is provided to switch an external device either automatically, or manually. You can use it to have a local light or siren trip when an alarm occurs, or even to set off a local alarm when the phone line is cut or unplugged. You can even use it to control a Dual Setback Thermostat to change the temperature remotely allowing you to warm up your cabin or home before you arrive! (Note: this will replace your existing thermostat) Also includes nonvolatile memory and a 24-hour battery backup with user-installed batteries.
