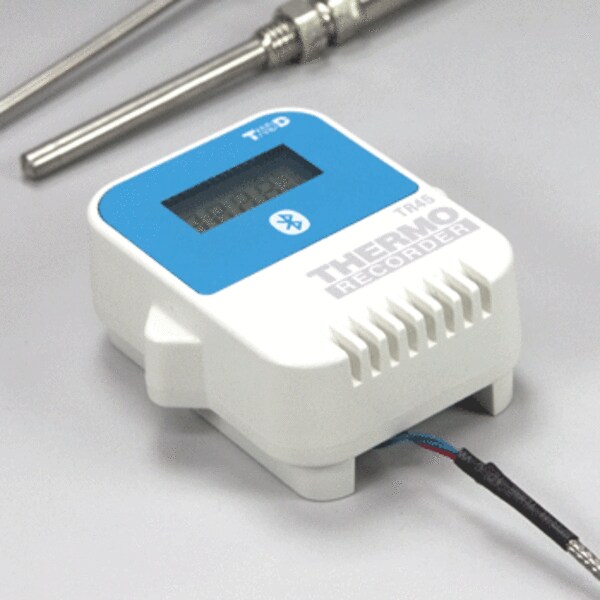

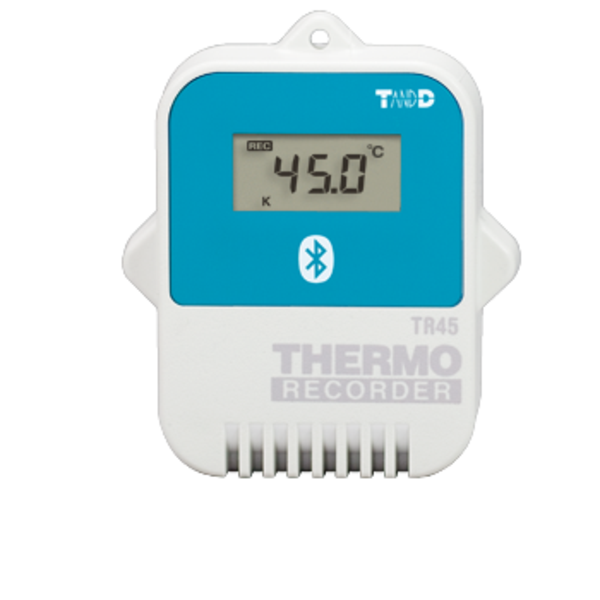

📈 TR45 Bluetooth TC/RTD Logger
✅ Supports either thermocouple or RTD inputs
✅ Monitor and download data via free mobile app
✅ Wide temperature capability for extreme applications
✅ Adjustable logging intervals with large onboard memory
✅ Exportable data for reporting and compliance
✅ Ideal for labs, process monitoring, and validation work
TR4 series temperature data loggers come equipped with Bluetooth low energy technology. We have designed two dedicated apps to take advantage of this technology. “ThermoREC” with automatic refresh allows for real–time monitoring of important temperature changes. “ThermoStorage” enables the uploading of recorded data from a collection of loggers to our free cloud storage service “T&D WebStorage Service”.
FREE Data Monitoring Google Play or App Store App
| Temperature Sensing Range: | -326F ~ 3200F (-199C ~ 1760C) |
| Operating Temperature Range: | -40 to 80 °C (-25 to 80 °C during wireless communication) |
| Temperature Accuracy: | +/- 0.6°F (+/- 0.3°C) typical |
| Temperature Resolution: | 0.1° |
| Temperature Scale: | °F or °C |
| Min/Max Memory: | Yes |
| Dimensions: | H:62mm × W:47mm × D:19mm |
| Calibration Available: | Yes (purchased separately) |
| Sampling Rate: | 15 choices from 1 sec. to 60 min. |
| Number of Sensors: | 1 |
| Data Points: | 16000 |
| Exportable Data: | Yes |
| Display: | LCD |
| Requires Software: | Yes |
| Software Type: | App (Google Play or App Store) |
(*) Thermocouple or RTD Temperature Sensor NOT included
(1) Battery
(1) Registration Code Label
(1) FREE Data Monitoring Google Play or App Store App
