Non-Reversible TimeStrip Duo Label
This item Must ship via Next Day Air with special packaging.
| Type of Sensor: | Color Change / Ascending |
| Temperature Sensing Range: | 50°F (10°C) / 93°F (34°C) |
| Temperature Accuracy: | +/- 2°F (+/- 1°C) typical |
| Temperature Scale: | °F and °C |
| Weight: | .003 |
| Calibration Available: | Certificate of Conformance ( $ Extra ) |
| Adhesive: | Yes |
| Color Change: | Permanent |
| Adhesive Type: | 3M |
- TimesStrip Duo with adhesive backing
- Instructions

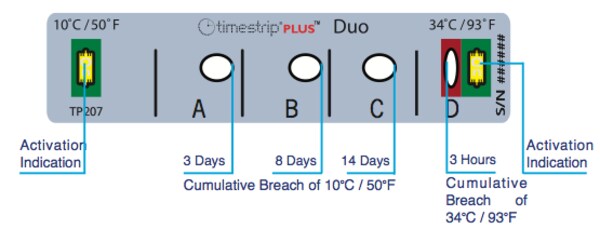

Timestrip® PLUS DUO indicator is completely inert prior to activation and can be stored at room temperature. The +10°C indicator is activated by the button on the back on the left and the +34°C indicator is activated by the button on the back on the right. The 34°C indicator should be activated first.
Preheat DUO to between +35°C and +60°C for 5 to 10 minutes. Once pre-heated, squeeze the 34°C button firmly to release the liquid into the indicator. The yellow window (surrounded by green) will gradually turn green and show “ON”. To activate the +10°C indicator simply squeeze the +10°C button at room temperature (or any temperature above +10°C). No pre-conditioning is required. Again, the yellow window (surrounded by green) will turn green and display ”ON”. In the event that either activation line doesn't appear immediately repeat these steps and press the button firmly.
Immediately after activating the +10°C button, place DUO at or below +8°C.
If the product to be monitored is already at or below +8°C Timestrip® PLUS DUO can be directly applied to this product.
