📈 Single-Use Ambient Temperature Recorder
The Single-Use NFC Temperature Recorderis a compact electronic data logger designed to monitor and document temperature conditions during refrigerated shipping, storage, and distribution.

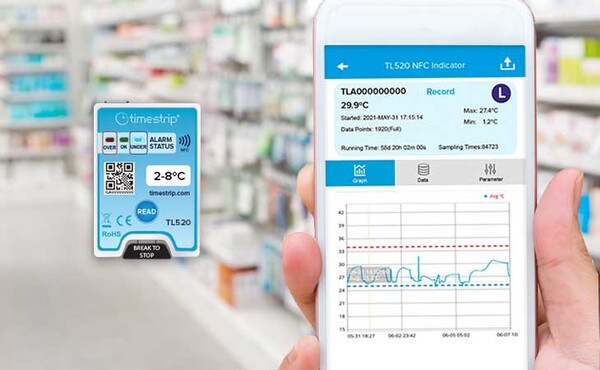

Pre-programmed with alarm limits of 35.6°F to 46.4°F (2°C to 8°C), the recorder measures temperature every minute and stores readings for review. Visual indicators provide temperature alarm status, while NFC technology allows users to retrieve recorded data using a compatible iPhone or Android smartphone.
Unlike LED-only time-temperature indicators, this device provides downloadable temperature recordsin PDF or Excel format through its companion app. A break-tab activation system, internal battery, and compact housing make it suitable for single-use cold-chain shipments.
──────────────────────────
Ideal Applications
💊 Pharmaceutical cold-chain shipments
🚚 Refrigerated transportation monitoring
🏥 Medical and healthcare distribution
🧪 Laboratory sample transportation
📦 Temperature-sensitive product shipping
📈 Shipment temperature documentation
- Type: Single use, disposable
- Case, Dimension, Weight: Rigid plastic, 40mm x 54mm x 5.5mm, 6g

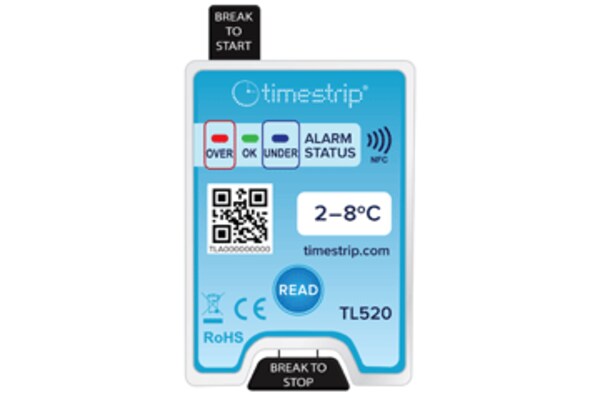

- Activation Feature: Break square tab to activate, tab to stop
- Operating Range: -30°C to 60°C
- Temperature Accuracy: ± 0.5 °C (-20°C~40°C), ± 1 °C (others)
- Sensor: Built in NTC
- Button Type: Single button design, query the status of temperature indicator
- Battery Life: 1 year
- Battery Type: Button cell CR1620 lithium
- Waterproof Grade: IP54
- Can be read with an NFC-enabled smartphone ( both iPhone & Android ) via our app.
- You can export data from the app to PDF or Excel for evidence of temperature breaches
- (25) Pc. Min. Single Use Temperature Recorder
- Pre-Programmed Alarm Range Alarm Range: < 2°C and >8°C
- Can be read with an NFC enabled smartphone via TimeStrip app. ( iPhone & Android )
- Expert Technical Support
Compliance & Risk Mitigation
📈 Records temperature throughout shipment
🚨 Visual indicators identify alarm conditions
⏱ One-minute sampling captures temperature trends
📤 PDF and Excel exports support recordkeeping
📋 Helps document cold-chain handling conditions
🕒 Start delay supports shipment preparation
🔋 Verify battery life before deployment
📶 Confirm smartphone NFC compatibility
This single-use temperature recorder supports shipment monitoring and temperature documentation but does not independently establish regulatory compliance. Confirm alarm settings, calibration requirements, smartphone compatibility, and data retrieval procedures before deployment.
──────────────────────────
TIMSEN520 can be read with an NFC-enabled smartphone via our app. You can export data from the app to PDF or Excel for evidence of temperature breaches. For a quick visual indication of temperature excursions, single-use TIMSEN520 can be read simply by viewing the flashing LED lights. The status light blinks every 30 seconds. This means everyone along the cold chain can check the status of the shipment, without any special training or equipment.
