🚦 Pre-Programmed Time-Temp Indicator
The Pre-Programmed Electronic Time-Temperature Indicatoris a compact, battery-powered monitoring device designed to detect temperature excursions during refrigerated storage, shipping, and distribution.
The indicator monitors temperature exposure over time and activates visual LED alarms when preset temperature and duration limits are exceeded. Its three alarm conditions help identify exposure to low temperatures, freezing conditions, and prolonged high temperatures.
Designed for temperature-sensitive products, this single-use indicator features a 30-minute start delay, self-adhesive mounting, and an internal battery. No external power supply is required.
Custom pre-programmed temperature thresholds and event settingsmay be available upon request.
──────────────────────────
Ideal Applications
💊 Pharmaceutical cold-chain shipments
🚚 Refrigerated transportation monitoring
🧪 Laboratory samples and diagnostic materials
📦 Temperature-sensitive product distribution
🏥 Healthcare and medical supply logistics
❄️ Refrigerated storage condition monitoring
| Type of Sensor: | Thermistor |
| Temperature Sensing Range: | -4º F ~ 140ºF / -20º C ~ 60º C |
| Operating Temperature Range: | -4º F ~ 140ºF / -20º C ~ 60º C |
| Temperature Accuracy: | +/- 1°F (+/- 0.5°C) typical |
| Temperature Scale: | °F and °C |
| Dimensions: | 22.6mm x 42.3mm x 5.6mm ; 6g |
| Calibration Available: | Certificate of Conformance ( $ Extra ) |
| Power: | Non-replaceable Battery |
| Battery Life: | 1 Year |
| Battery Backup: | No |
| IP Rating: | IP54 Dust / Splash Proof |
| Cumulative Indication Time: | User Programmable |
| Special Notes: | Attach to a product using the self-adhesive backing |
| Adhesive: | Yes |
| Number of Events: | Custom |
| Shelf Life: | 2 Year |
- (10) Pc. Minimum
- TTI Alarm / Singe use
- Flashing Lights Below 2°C / Above 8°C

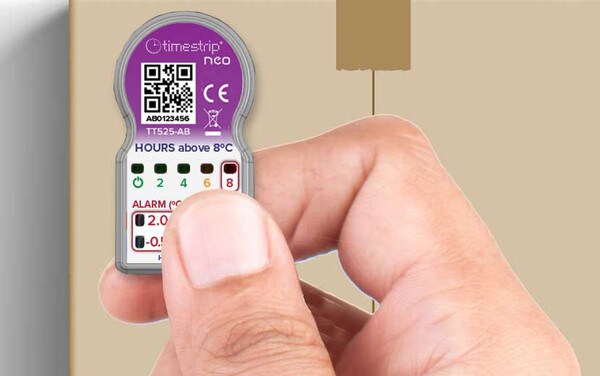

- Attach to a product using the self-adhesive backing
- Expert Technical Support
Compliance & Risk Mitigation
🚦 LED alarms identify temperature excursions
⏱ Timed thresholds reduce transient alarms
❄️ Detects low-temperature and freeze exposure
🔥 Tracks cumulative high-temperature exposure
📋 Supports shipment receiving inspections
🔋 Verify shelf life before activation
📑 Certificate of Conformance available
This single-use electronic indicator identifies preset time-temperature excursions through LED alarms. It does not replace a continuous temperature data logger where detailed temperature records are required. Verify alarm thresholds, activation procedures, and suitability for the monitored product before use.
──────────────────────────

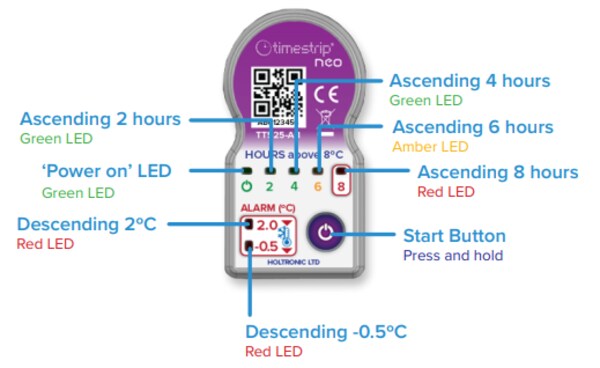

- Reacts at three temperatures and five time intervals
- Visible alert if the temperature drops below 2°C
- Second LED shows a further alarm if the temperature drops below -0.5°C
- Row of 3 LEDs alert when the product has been above 8°C for 2,4,6 and 8 hours
How to use
- To activate, press and hold the button for >3.5 seconds until the green ‘Power on’ LED flashes 3 times.
- Once the indicator has been activated, the "Power On" LED will flash every 8 seconds.
- The device starts monitoring temperature after the 30-minute start delay.
- If no temperature breach has occurred, the green ‘Power on’ LED will flash.
- When the temperature drops below 2°C for more than 30 minutes single event the red ’30 minute’ LED will flash. Additionally, falling below -0.5ºC for 10 m will flash the second ALARM LED.
- When the temperature rises above 8°C for more than 8 Hours cumulative, the red ’60 minute’ LED will flash.
