RTD 100Ω Sensor with Custom Connector

(0)No Reviews yet
$159.95
QuantityPrice
1 – 9$159.95
10 – 24$151.95
25 – 49$143.96
50 – 74$135.96
75 – 99$131.96
100 +$127.96
SKU: TIPRTD115
-99°F ~ 752°F (-99°C ~ 400°C)
High Accuracy +/- 0.3°F (+/- 0.15°C)

1/8" OD, 6" Sheath Length, 10ft Lead Wire, MiniXLR

Call To Customize This Sensor. 1-800-TIP-TEMP ( 847-8367 )

Replacement Sensor for HUAMTR002P01 Meter

RTD15-100H-SS-18-6-TT-120-MiniXLR-HUATO

IN STOCK

Current Stock: 1

Notable Features

Back

Details

RTD15-100H-SS-18-6-TT-120-MiniXLR-HUATO

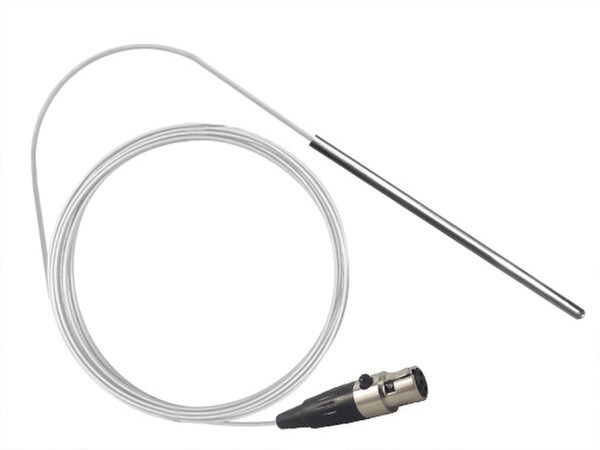

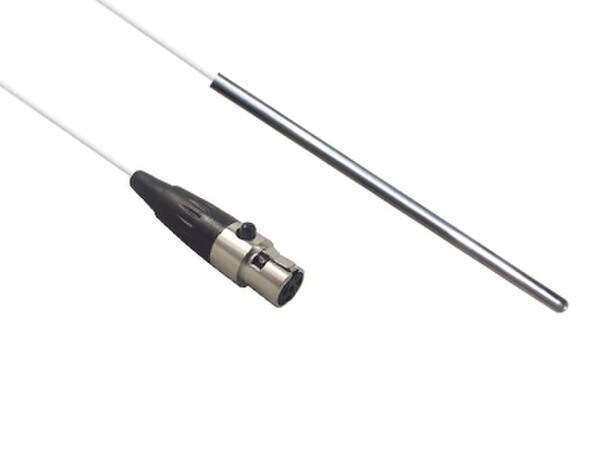

Stainless Steel RTD 100Ω Sensor for use with sku HUAMTR002P01. The sensor is 6" long and 1/8" OD with 10ft long lead wire.
Back

Specs

Temperature Sensing Range: -99°F ~ 752°F (-99°C ~ 400°C)
Temperature Accuracy: +/- 0.3°F (+/- 0.15°C) typical
Special Notes: Special Connector
Thermocouple Type: RTD
Sheath Material: Stainless Steel
Sheath Diameter: 0.125
Sheath Length: 6"
Wire Material: Teflon
Wire Length: 10ft (120in)
Max Temp: 752F (400C)
