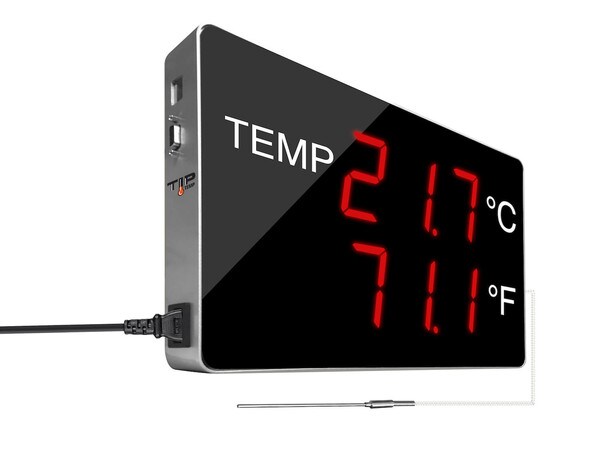

3" Digit Temperature Indicator
3" Digit LED Large Display Thermometer Temperature Meters are widely used in the medical industry, electronic, food, textile, HVAC, warehouse, hospitality to name a few. TIPTEMP can help satisfy your various requirements perfectly.
Has a visual distance of 40 Meters /130 Ft / 45 Yds,
Ideal for Cryogenic applications Instrument displays -100°C ~ 400°C

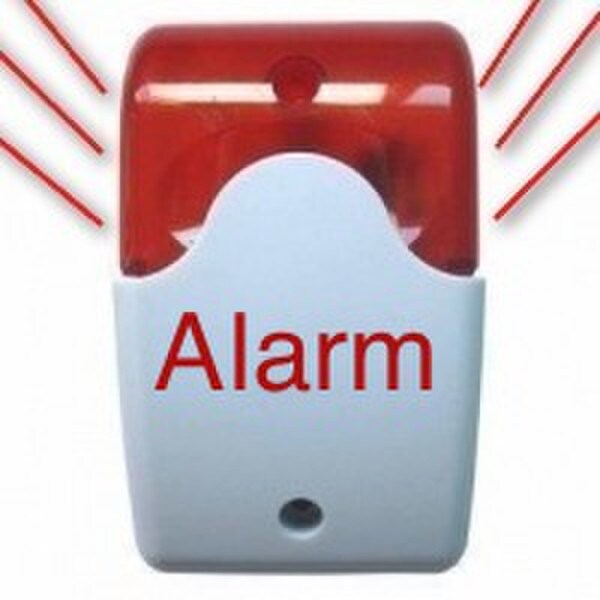

Includes Built-In Audible and Visual Alarm Light. ** Audible Alarm can be toggled On/Off.
| Type of Sensor: | RTD 100ohm |
| Temperature Sensing Range: | -99 ~ 752°F (-99°C ~ 400°C) |
| Temperature Accuracy: | +/- 1°F (+/- 0.5°C) typical |
| Temperature Resolution: | 0.1° / 1° Resolution above 100° |
| Temperature Scale: | °F and °C |
| Sensor Dimensions: | 5" Length 1/8" diameter |
| Sensor Wire Length: | 10 Ft. External Cable |
| Humidity Range: | N/A |
| Min/Max Memory: | No |
| Dimensions: | 15" x 9.5" x 1.75" |
| Weight: | 5 Lbs |
| Calibration Available: | Yes (purchased separately) |
| Power: | 100~240VAC |
| Battery Backup: | No |
| Special Notes: | Viewing Distance: 40 Meters ~ 130 Ft ~ 45 Yds |
| Number of Sensors: | ONE |
| Display: | LED |
| Network Connectivity: | N/A |
| Display Dimensions: | 3" Digits |
| Offset: | Yes |
| Thermocouple Type: | RTD |
| Sheath Material: | Stainless Steel |
| Sheath Diameter: | 0.125 |
| Sheath Length: | 5.125" |
| Transition Diameter: | .250" |
| Transition Length: | 1.0" |
| Wire Material: | SSOB Teflon |
| Plug Size: | Special Order Connector |
- 3" / THREE Digits Large Display Thermometer
- High Accuracy RTD Temp Sensor with 10Ft. Cable
- 10 Ft Power Cord
- Expert Technical Support
Alarm Light and Buzzer: 90db, Temperature alarm points -40C (-40F ) to 80C (176F) HE230-ET+A01
View Operation Manual For HUAMTR002P01
View Operation Manual For HUAMTR002P01
This instrument supports Cryogenic temperature range and temperatures as high as 400°C. Speak with a Thermal Advisor!
" - " minus sign represents ONE of THREE Digits
The optional Audible (90db) & Visual Alarm is programmed between -40°C/-40°F to 80°C/176°F
" - " minus sign represents ONE of THREE Digits
The optional Audible (90db) & Visual Alarm is programmed between -40°C/-40°F to 80°C/176°F
