Large Digit Thermometer Indoor or Outdoor Use
Options
- Inputs Thermocouple J, K or PT100 (RTD) 2/3 wire
- Decimal point for low-scale ranges
- Degrees C or F scale ranges

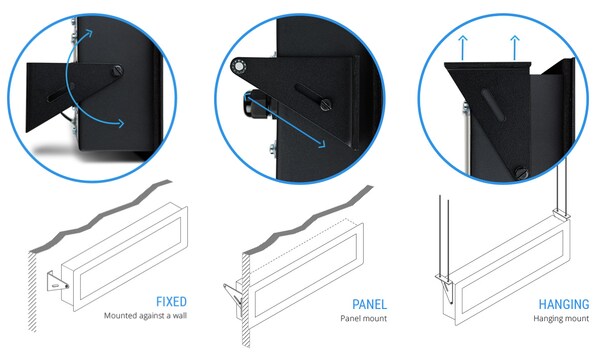

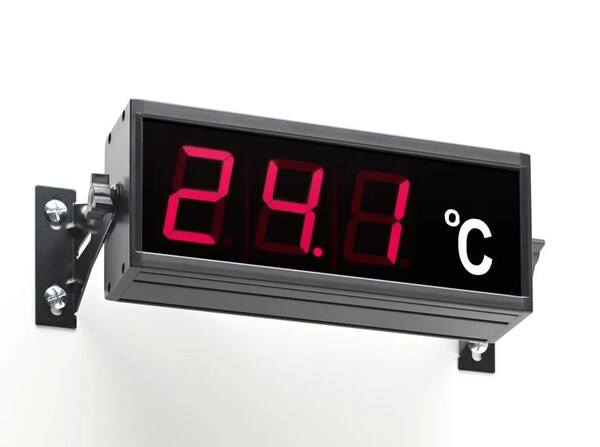

- Wall or Panel Mounting options
- Digit heights 2.3”(58mm), 4”(102mm), 6”(152mm), 8”(203mm), 12”(305mm), 14”(355mm), 16” (405mm),
- Viewing distances from 65ft (20 meters) to 500ft (155 meters) depending on digit heights
Power Supply Options

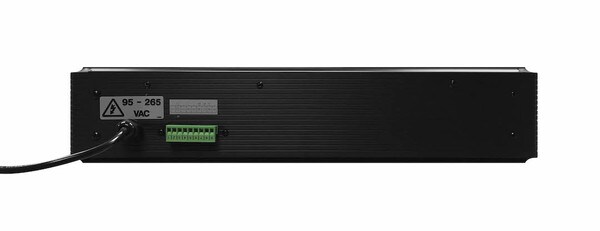

- 95-265Vac, 24Vac, 12Vdc, 24Vdc
Alarm Output Options
- HI or LO trip via 3A SPCO relay
Serial Output Options
- RS-232, RS-422, RS-485, MODBUS, ASCII protocol
Re-Transmission Output Option
- 0-20mA, 4-20mA, 1-5Vdc, 0-10Vdc
Accuracy
- Thermocouple +/- 0.5% FS +/- 1 digit
- PT100 (RTD) +/- 0.25% FS +/- 0.5 digit
Scale Ranges
- Thermocouple
- J: 0 - 750ºC / 32 - 1382ºF
- K: 0 - 1200ºC / 32 - 2192ºF
- R: 400 - 1600ºC / 752ºF - 2912ºF
- S: 400 - 1600ºC / 752ºF - 2912ºF
- T: 0 - 400ºC / 32ºF - 752ºF
- PT100 / RTD
- 2/3 wire
- -199 ~ 200ºC / -326~3922ºF,
- -19.9 ~ 99.9ºC / -3.82 ~ 211.8ºF
Also Available In Larger Digits.- 8.0” (203mm) Clear viewing up to 75 meters / 246 feet
- 12.0” (305mm) Clear viewing up to 115 meters / 377 feet
14.0” (355mm) Clear viewing up to 135 meters / 442 feet
16.0” (405mm) Clear viewing up to 155 meters / 508 feet
| Type of Sensor: | Thermocouple & RTD |
| Temperature Sensing Range: | Custom to Your Spec or Temp Sensor |
| Temperature Accuracy: | +/- 2°F (+/- 1°C) typical |
| Temperature Resolution: | 0.1° |
| Temperature Scale: | °F or °C |
| Calibration Available: | Please Call to Discuss |
| Power: | 120V |
| Battery Backup: | No |
| IP Rating: | Call |
| Number of Sensors: | ONE |
| Exportable Data: | No |
| Display: | LED |
| Requires Software: | NO |
| Network Connectivity: | Ethernet |
Please Speak with a TIPTEMP Thermal Advisor to discuss your needs.
Viewing Distances
- 2.0″ – 20 meters/65 feet
- 4.0″ – 40 meters/130 feet
- 6.0″ – 60 meters/196 feet
- 8.0″ – 80 meters/262 feet
- 12.0″ – 120 meters/400 feet
- 14.0″ – 140 meters/460 feet
- 16.0″ – 160 meters/525 feet
