⚙️🔥 4" High / Four Digit Process Meter
✅ Large 4" high LED digits for long-distance visibility
✅ Fully configurable alarm thresholds
✅ Ramp and soak programming capability
✅ Accepts thermocouples, RTDs, voltage, and current inputs
✅ Programmable LED color display
✅ Ethernet component included
✅ Optional relay and communication outputs
✅ Offset / reading adjustment capability
✅ Industrial-grade construction
✅ Expert technical support available
──────────────────────────
Large Display Process Meter is designed for Thermocouples, RTD's, and Process (DC) Voltage or Current. It handles TEN (10) thermocouple types: K, J, T, E, R, S, B, C, N, & J DIN. It works with a wide selection of RTD's, both Pt. 0.00385 and 0.00392 curves for 100 Ohm, 500 Ohm, and 1000 Ohm and it measures with 2, 3, or 4 wire connections for the highest accuracy. This model also measures process voltage: 0-100 mV, 0-1 V, 0-10 V ranges and process current, 0-20 mA (4-20 mA) with built-in excitation of 24Vdc standard
- Part number OMEMTR001
- Large Display Thermometer:
- Accepts all Thermocouples and RTD's, Process Voltage and Current

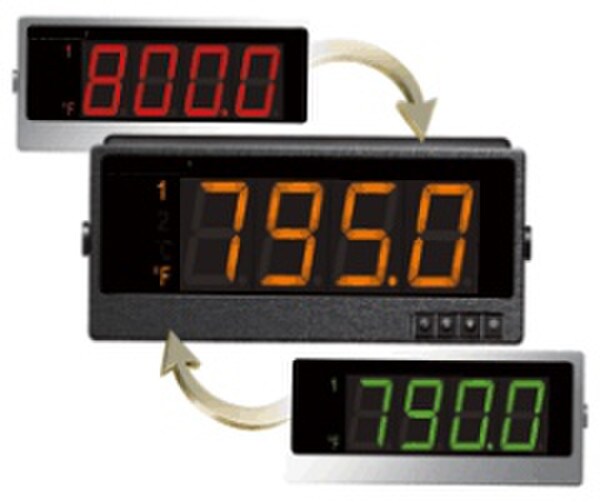

- Programmable for Green, Red & Amber Display
- 4" digit size and 4 digit
- Display Resolution: 0.1°F
- Accuracy: ± 1°F
- Capable of Offset / Reading Adjustment
- Refresh Rate 2.5 per second
- Optional Control Relay Outputs
- Optional Ethernet with Embedded Web Server
- Optional Isolated RS422/485 & RS232
- Power: 100 to 240 VAC ±10%, 50/60 Hz
- Instrument Environmental Conditions: 32 to 104°F
- Warm-Up to Rated Accuracy: 60 minutes
- Can be mounted flush in a panel or surface mounted with included brackets
- (1) OMEMTR001 Meter
- (1) Mounting Bracket
- (1) Instructions
- Expert Technical Support
- Power Cable
- Temperature Sensor
