Transcat RTD Temp Sensor 100Ω
RTD15-100Cryo-SS-3/16-3-TT-120
Cryogenic Low Temperature 100Ω RTD 3-Wire Sensor (-100°C)

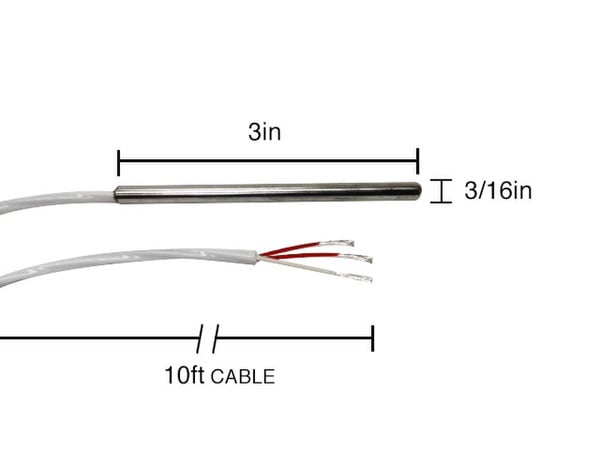

Stainless steel sheath, 3/16" dia x 3"L with 10ft Teflon insulated lead wire. Internal wires to be 2 x Red, 1 x White white. Low.
NO TRANSITION TO BE FITTED
Cryogenic Low Temperature 100Ω RTD 3-Wire Sensor (-100°C)
Stainless steel sheath, 3/16" dia x 3"L with 10ft Teflon insulated lead wire. Internal wires to be 2 x Red, 1 x White white. Low.
NO TRANSITION TO BE FITTED
| Temperature Sensing Range: | -148°F ~ 302°F (-100 ~ 150°C) |
| Temperature Accuracy: | +/- 1°F (+/- 0.5°C) typical |
| Temperature Scale: | °F and °C |
| Weight: | .1 |
| Thermocouple Type: | RTD |
| Sheath Material: | Stainless Steel |
| Sheath Diameter: | 0.187 |
| Sheath Length: | 3" |
| Wire Material: | Teflon |
| Wire Length: | 10' |
