🟡 "K" 3/16 Dia 6" Length Penetration

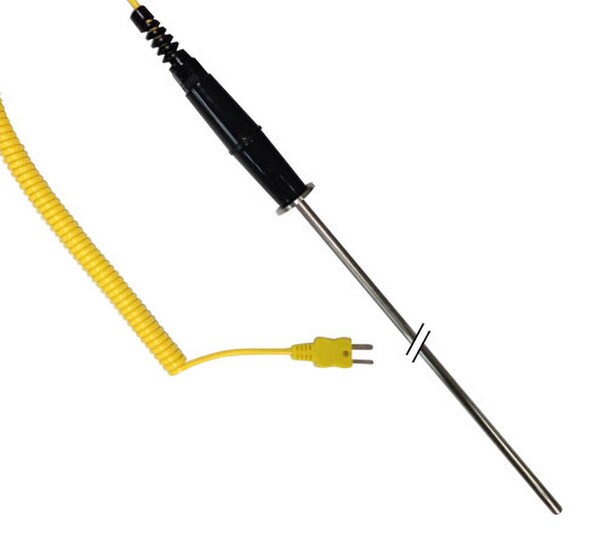

This Type “K” penetration thermocouple features a rugged 316 stainless steel sheath and a sharp probe tip for insertion into semi-solids, air, or process materials. The 6" long, 3/16" diameter sheath provides durability for industrial applications, while the coiled PVC cable offers flexibility and strain relief during use. Terminated with a miniature flat-pin plug for compatibility with most Type K thermometers.
──────────────────────────
Key Features
✅ Wide temperature range up to 1960°F (1070°C)
✅ 316 stainless steel sheath for corrosion resistance
✅ 3/16" (0.187") diameter for durability and strength
✅ 6" penetration length for process measurement
✅ Coiled PVC cable extends from 1 ft to 3 ft
✅ Miniature flat-pin plug for standard Type K meters
| Temperature Sensing Range: | -274 ~ 1960°F (-170 ~ 1070°C) |
| Temperature Accuracy: | +/- 4°F (+/- 2°C) typical |
| Thermocouple Type: | Thermocouple |
| Sheath Material: | Stainless Steel |
| Sheath Diameter: | 0.187 |
| Sheath Length: | 6 Inches |
| Wire Material: | PVC ( Coiled ) |
| Wire Length: | 1 Foot (extends to 3 feet) |
| Plug Size: | Miniature |
- Insert miniature plug into thermocouple meter, ensuring readout type selected is Type K.
- Immerse sensor tip into material/environment to measure temperature.
