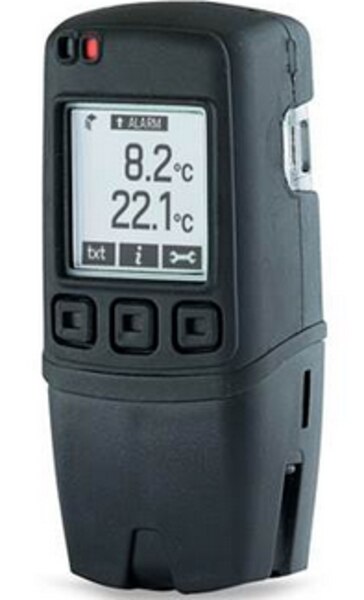

Battery Operated Thermocouple Logger
The LASREC044 data logger records over 250,000 temperature readings in one or more sessions for up to 4 months. It is compatible with K, J and T-type thermocouples. Inside the rugged case, buttons for start, stop and restart and a graphic LCD with on-screen menus provide real-time analysis of data as a summary or as a graph. The EL-WIN-USB software enables quick configuration and data download via the USB port. Supplied with K-type probe and batteries, the EL-GFX-TC is a popular part.
| Temperature Sensing Range: | 32~392°F (0~200°C) |
| Operating Temperature Range: | -14 ~ 104°F (-10 ~ 40°C) |
| Temperature Accuracy: | +/- 2°F (+/- 1°C) typical |
| Temperature Scale: | °F and °C |
| Min/Max Memory: | Yes |
| Dimensions: | 4.01 ” x 1.90 ” x 1.20 ” |
| Calibration Available: | Yes (purchased separately) |
| Battery Life: | 1 year (at 25°C, 1 minute logging rate, LCD off) |
| Sampling Rate: | 2 seconds - 1 hour |
| Number of Sensors: | 1 |
| Data Points: | 252,928 |
| Exportable Data: | Yes |
| Recording Rate: | User selectable between 2 seconds & 1 hour |
| Display: | LCD |
| Requires Software: | Yes |
| Software Type: | Windows 10, 8, 7 (32-bit and 64-Bit Versions) |
| Network Connectivity: | USB |
| Thermocouple Type: | Thermocouple |
| Plug Size: | Mini |
- Thermocouple Temperature Logger
- Type K probe ( limited temperature range )
- Batteries
- Magnetic mounting bracket
- USB Cable
- Free Software Download
- Expert Technical Support
