🟡 Hand-Held “K” Thermocouple Probe

(0)No Reviews yet
$95.05
QuantityPrice
1 – 9$95.05
10 – 24$90.30
25 – 49$85.55
50 – 74$80.79
75 – 99$78.42
100 +$76.04
SKU: TIPTCK487P01
Provided: Each

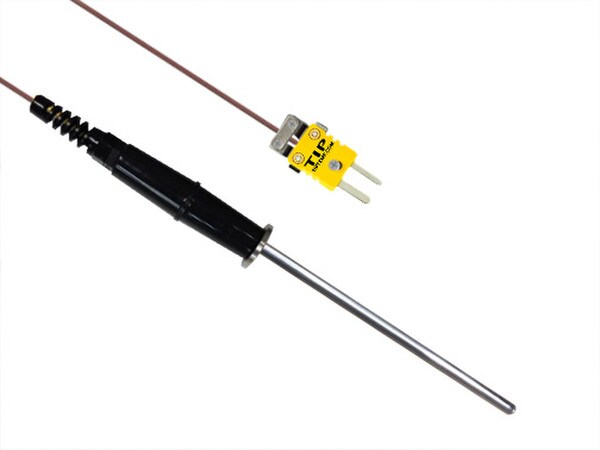

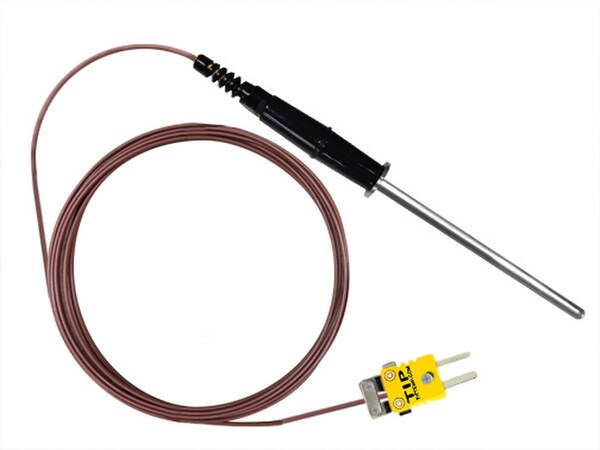

High-temperature stainless steel probe with attached mini connector

Quick Specs

🌡 Thermocouple Type: 🟡 Type K (Chromel / Alumel)
🌡 Temperature Range: −319°F to 1680°F (−195°C to 916°C)
🎯 Accuracy: ±4°F (±2°C) typical
🔩 Sheath Material: Stainless steel
📏 Sheath Diameter: 1/8" (0.125")
📐 Sheath Length: 12"
🧵 Lead Wire: 24 AWG Teflon-insulated cable
📐 Cable Length: 120" (10 ft)
🔌 Connector: Miniature Type K plug (attached)
🔥 Maximum Temperature: 1680°F (916°C)

📦 Browse the related products below, explore similar probes, compatible meters, and suggested accessories that integrate seamlessly with this model.


🛒 Add to Cart Now or 📞 Call 1-800-TIP-TEMP (847-8367) for expert guidance.

Notable Features

Back

Details

✅ Wide temperature range suitable for extreme heat applications
✅ Durable stainless steel probe for industrial environments
✅ Flexible Teflon lead wire resists heat and chemicals
✅ Attached mini plug for quick connection to meters and loggers
✅ Ideal for furnaces, kilns, ovens, and process validation
✅ Compatible with all Type K thermocouple instruments

TC70-K-SS-18-U-12-TT-20-120-MM
Type "K" calibration thermocouple hand held probe, 316SS sheath material 1/8" diameter, 12" long ungrounded junction. 120" length of Teflon insulated lead 20ga wire with a mini K plug and cable clamp.

Back

Specs

Temperature Sensing Range: -319 ~ 1680°F (–195 ~ 916°C)
Temperature Accuracy: +/- 4°F (+/- 2°C) typical
Thermocouple Type: Thermocouple
Sheath Material: Stainless Steel
Sheath Diameter: 0.125
Sheath Length: 12
Wire Material: Teflon
Wire Gauge: 24 Ga
Wire Length: 120" / 10 Ft.
Plug Size: Mini Attached
Max Temp: 1680°F / 916°C
