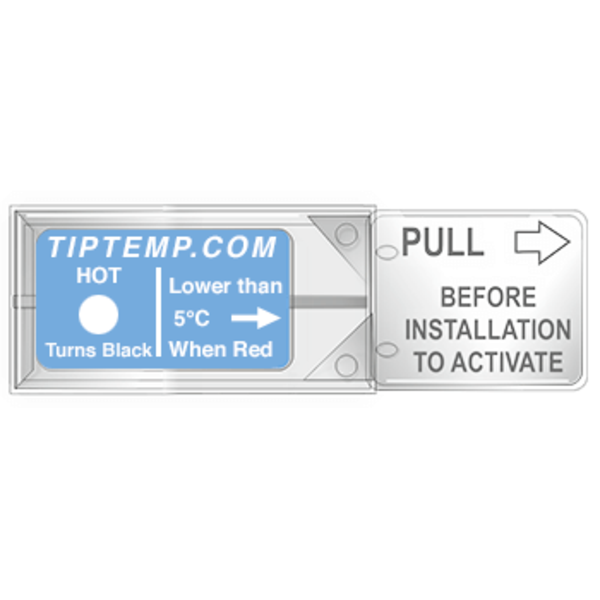

Non-Reversible Tempasure Label
Non-Reversible Disk Records a Descending "COLD" temperature (Minimum 41°F/5°C) along with an Ascending "HOT" temperature Label (Maximum 99°F/37°C)
Tempasure+ with self-adhesive backing. To activate the operator must pull a safety tab. The unit will clearly show a red window when the product to which it is attached has experienced a temperature below 41°F/5°C condition. The "HOT" indicator changes from white to black when exposed to temperatures above 99°F/37°C.
|Type of Sensor:||Bi-Metalic / Ascending / Descending|
|Temperature Sensing Range:||Falling 41°F(5°C) / Rising 99°F(37°C)|
|Temperature Accuracy:||+/- 2°F (+/- 1°C) typical|
|Temperature Scale:||°F and °C|
|Dimensions:||1.38" long x .069" wide x 0.22"thick|
|Calibration Available:||Certificate of Conformance ( $ Extra )|
|Life After Activation:||18 Months|
|Storage Conditions:||TEMPASURE PLUS Temperature indicators can be stored at 22°C (72°F) and 20-60% relative humidity prior to activation. Keep away from heat, such as, heating vents, hot pipes or direct sun.|
|Shelf Life:||18 Months|
- Bag of 20 pcs
- Expert Technical Support
- Requires Special Packaging for prevent 99°F from activating.
After proper pre-use conditioning, the monitoring process is started by simply pulling the side tab off. The TEMPASURE PLUS is now set and will trigger if it is exposed to a temperature above or below its trigger temperature (this depends on whether the product is an ascending or descending unit).
