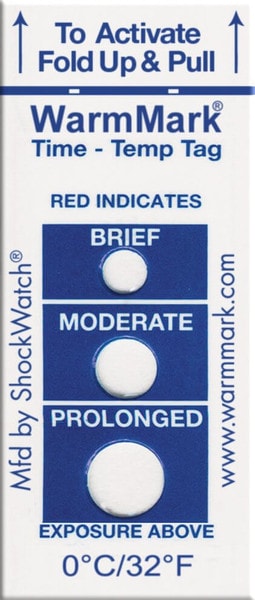

⬜⬛ WarmMark® TTI Indicator 32°F
The WarmMark® TTI Indicator provides permanent visual evidence when temperature-sensitive products are exposed above 32°F (0°C). When activated by temperature exposure, the indicator physically changes from white to black, generating a permanent, irreversible record of the maximum temperature exposure. Its adhesive backing allows easy attachment directly to products, packaging, cartons, or shipping containers.
──────────────────────────
Ideal Applications
💊 Pharmaceutical shipments
🏥 Healthcare and medical products
🧪 Laboratory samples
📦 Cold chain shipments
🍽 Food and beverage distribution
🚚 Temperature-sensitive transportation
❄️ Frozen and refrigerated products
| Type of Sensor: | Chemical / Time Temperature |
| Temperature Sensing Range: | Activates Above 0°C/32°F |
| Temperature Accuracy: | +/- 2°F (+/- 1°C) typical |
| Temperature Scale: | °F and °C |
| Min/Max Memory: | No |
| Dimensions: | L x W x thickness 4.6 x 1.9 x 0.15 cm (1.81 x 0.75 x 0.06 in.) |
| Weight: | 0.0025 lb. |
| Calibration Available: | Certificate of Conformance ( $ Extra ) |
| Adhesive: | Yes |
| Storage Conditions: | Room Temperature / Cool / Dry |
| Number of Events: | 3 Events: Brief 2 Hrs, Moderate 12 Hrs, Prolonged 48 Hrs. |
| Color Change: | Permanent |
| Shelf Life: | 1 Year from Date of Sale |
| Adhesive Type: | 3M |
Minimum Order of (50) WarmMark Labels.
Used in transportation and long term storage.
Used in transportation and long term storage.
Arming & Use:
1. *All WarmMark breach window(s) should be white prior to arming the device.
2.Before arming, the WarmMark indicator should be placed in an environment at least 5°C (9°F) below the WarmMark’s activation threshold temperature for a minimum of 30 minutes. (For WarmMark Duo, the indicator should be at least 5°C (9°F) or cooler for a minimum of 30 minutes.)
3. To arm the WarmMark indicator, fold up and pull out the indicator’s activation tab until the tab and barrier film have been completely removed.
4. If using a WarmMark indicator with an activation threshold temperature below the ambient temperature, immediately place the indicator in the environment to be monitored to avoid activation.
5. Remove the adhesive liner from the WarmMark and adhere the indicator to a clean, dry surface.
1. *All WarmMark breach window(s) should be white prior to arming the device.
2.Before arming, the WarmMark indicator should be placed in an environment at least 5°C (9°F) below the WarmMark’s activation threshold temperature for a minimum of 30 minutes. (For WarmMark Duo, the indicator should be at least 5°C (9°F) or cooler for a minimum of 30 minutes.)
3. To arm the WarmMark indicator, fold up and pull out the indicator’s activation tab until the tab and barrier film have been completely removed.
4. If using a WarmMark indicator with an activation threshold temperature below the ambient temperature, immediately place the indicator in the environment to be monitored to avoid activation.
5. Remove the adhesive liner from the WarmMark and adhere the indicator to a clean, dry surface.
The WarmMark should be located where it will be visible to the receiver of the monitored shipment. The WarmMark can be adhered directly to the product being monitored or located inside the packaging.
