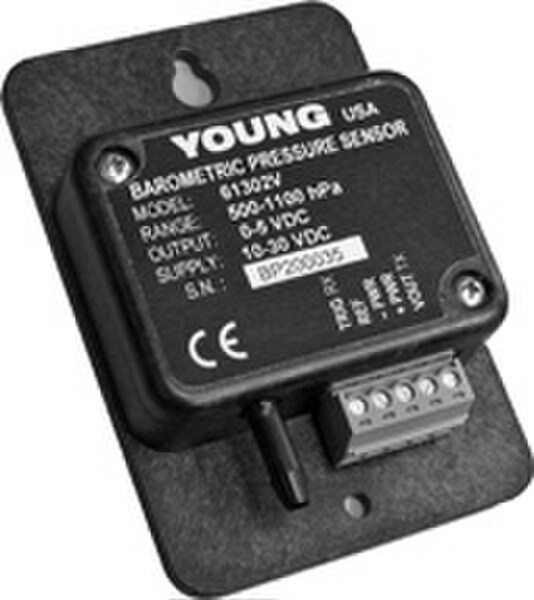

Barometric Pressure Sensor Model 0-5V Output 61302V

(0)No Reviews yet
QuantityPrice
SKU: YNGSEN001
Provided: Each
Operating Temperature: Operating Temperature: -40 to +60°C
Also available with 4/20mA Output --- Please Call

SPECIAL ORDER: Terms & Conditions Apply.

Notable Features

Barometric Pressure Sensor Model 0-5V Output 61302V

Also available with 4/20mA Output --- Please Call
SPECIFICATIONS
Pressure Range:500-1100 hPa
Operating Temperature:-40 to +60°C
Digital Accuracy*:0.2hPa (25°C)
0.3 hPa (-40 to +60°C)
Analog Accuracy**:0.05% of analog pressure range
Analog Temperature Dependence:0.0017% of analog pressure range/°C (25°C reference)
Long Term Stability:0.2% FS per year
Update Rate:1.8 Hz max
Serial Output:Full duplex RS-232 - 9600 baud
Polled or Continuous
ASCII text or NMEA format
Half duplex RS-485 (61302L only)
Analog Output:0 to 5000 mV (Model 61302V)
4 to 20 mA (Model 61302L)
Resolution:Analog 0.025% of scale
Serial 0.01 hPa
Power:Model 61302V (7 to 30 Vdc)
Vout Mode = 2.8 mA
Sleep Mode = 1.4 uA
RS232 Mode = 7 mA

Model 61302L (7 to 30 Vdc)
4 to 20 mA Mode = 25 mA max
RS-232 or RS-485 Mode = 7 mA
Dimensions:90mm (3.6 in) x 60 mm (2.4 in) x 20 mm (0.8in)
Weight:Net 44 g (1.5 oz)
  • 1 Barometric Pressure Sensor
  • Certificate of Conformance
  • Expert Technical Support
