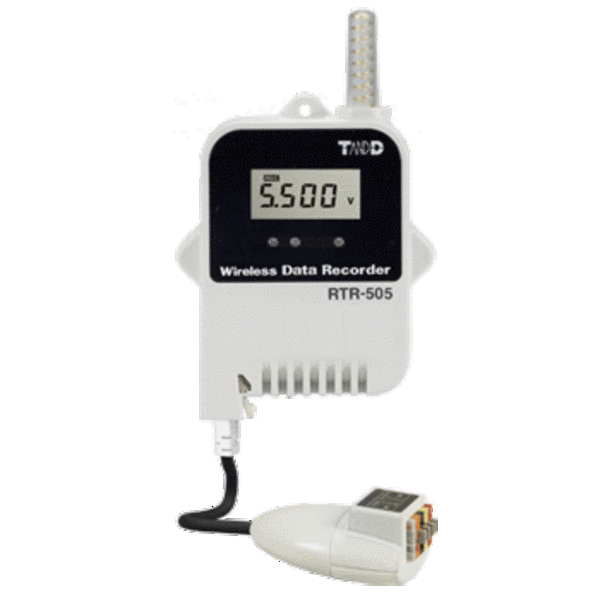

RTR-505-V Wireless Voltage Datalogger

(0)No Reviews yet
1 – 4$233.40
5 – 9$221.73
10 – 19$210.06
20 – 24$198.39
25 +$186.72
Provided: Each
Measurement DC 0 ~ 22V
Wireless voltage datalogger designed to measure and record voltage signals from various types of sensors and measuring devices

Notable Features

The TandD RTR-505-V Wireless Voltage Datalogger is designed to measure and record voltage signals from various types of sensors and measuring devices. Two types of recording method (instantaneous or average) are available to be chosen from. It is equipped with a preheat function that transmits a preheat signal synchronized with the recording interval to turn sensors or other devices ON and OFF.

16,000 readings means you can record every one second and still log four and a half hours of data; or at a recording interval of 60 minutes you can keep logging for 666 days. By using the software the recording interval for a Remote Unit can be set to one out of fifteen choices (1 second to 60 minutes).

Select the Recording Mode from Endless or One Time. When using Endless Mode, upon reaching the logging capacity the oldest data is overwritten and recording continues. When using One Time, upon reaching logging capacity recording automatically stops.

The Data Loggers in the RTR-500 Series only function as Remote Units. They require one of the following: Base Unit or Hand Held with which to carry out wireless communication.
  • Part Number: TADREC012
  • Measurement range: DC 0 to 22V
  • IP64 splash proof
  • Input Module : VIM-3010 is included
  • Accuracy:±0.5 mV + 0.3 % of reading (10 to 40 °C)
  • ±1 mV + 0.5 % of reading (-40 to 10 °C / 40 to 80 °C)
  • Logs up to 16000 readings
  • Selectable recording intervals from 1 second to 60 min
  • Operating temp: -22 to 176°F (-30 to 80°C)
  • 10 Month Battery Life
  • Data Logger
  • Battery
  • Instruction Manual
  • Strap
  • Online Technical Support
