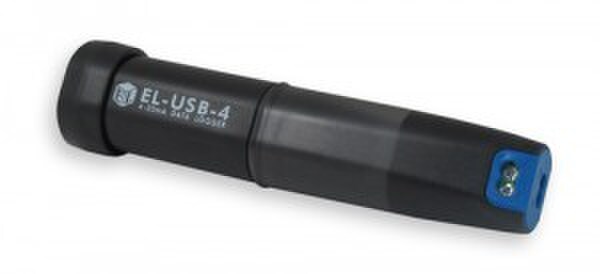

⚡ Electrical Current USB Data Logger
No cable required, plugs into USB port. This data logger measures and stores up to 32,000 current loop readings over a 4 / 20 mA measurement range. The user can easily set up the logging rate and start-time, and download the stored data by plugging the module straight into a PC's USB port and running the purpose designed software under Windows 98/2000/XP/Vista/Windows 7. The data can then be graphed, printed or exported to other applications. The data logger is supplied with long-life replaceable 1/2 AA 3.6V lithium battery, allowing the unit to log data continually for at least one year. Correct functioning of the unit is indicated by flashing red and green LED's.
Key Features
✅ Measures 4–20 mA signals directly from process loops
✅ Simple USB setup — no external power or interface required
✅ Configurable logging intervals and alarm thresholds
✅ Stores up to 32,000 readings with date/time stamp
✅ LED indicators provide instant status feedback
✅ Compact, durable design for industrial and field applications
- Part number LASREC004
- 20 mA current loop measurement range Logging rates between 1s and 12hr
- Selectable alarm thresholds
- Red and green LED status indication
- 32000 reading memory
- USB interface for set-up and data download Supplied with lithuim battery
- Battery life: 1 year typical
- 4 / 20 mA Current USB Data Logger
- Software
- 1/2 AA Battery
- Instructions
- Expert Technical Support
| How to Set Up Logger Video | How to Use Logger Video |
 |  |
