Guardian Thermometer PRO Cryo Freezer
Safely monitor clinical samples, vaccines, pharmaceuticals and other sensitive items that need to be kept at ultra low temperatures.
With the mobile app, view if an alarm was triggered, generate an instant data report. Device stores up to 90 alarm events, records readings once every 5 minutes by default, or the user may adjust the reading interval between one minute to once every 12 hours, logging duration is 227 days (7.5 months) and are pre-programmed with alarm values.
Note: The Traceable Live App $30 per month fee has no limit to the number of devices used for each account.
| Type of Sensor: | RTD |
| Temperature Sensing Range: | –130 ~ 212°F (–90 ~ 100°C) |
| Operating Temperature Range: | -4 ~ 158°F (-20 ~ 70°C) |
| Temperature Accuracy: | ±0.2°C / ±0.4°F |
| Temperature Resolution: | 0.01° |
| Temperature Scale: | °F or °C |
| Sensor Dimensions: | 1/8-inch Diameter, Stem length of 6 1/4 inches, Overall length of 9 inches |
| Sensor Wire Length: | 9 feet |
| Min/Max Memory: | Yes |
| Calibration Available: | Yes (included) |
| Special Notes: | Approvals/Markings: CE, RoHS |
| Data Points: | 64,000+ |
| Exportable Data: | Yes, via Bluetooth, Requires Smartphone App |
| Display: | LCD |
| Requires Software: | Yes, App |
| Software Type: | Free smartphone application for configuration and data analysis |

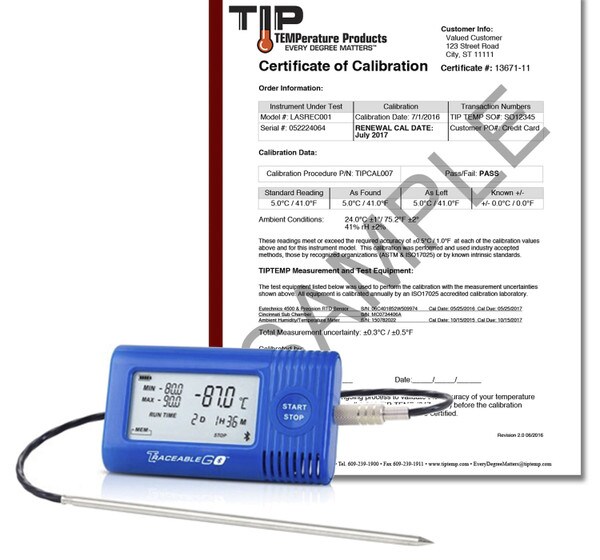

- (1) Guardian PRO with -90C Stainless Steel Probe
- Free Software
- (1) NIST Traceable Calibration Certificate
- (2) AAA Alkaline Batteries
- (1) Quick Start Guide
- (1) Wall Mount
- Expert Technical Support
Use the resources below to quickly and easily begin using Guardian Thermometer PRO. If you prefer to speak to our expert staff, call us at 1-800-TIP-TEMP or e-mail us at EveryDegreeMatters@tiptemp.com
Is one of the Apps listed above required to use the TraceableGO™ Datalogger?
Yes. Without the app, you will not be able to start new trips, adjust parameters, download the data, or export the data.
Can I use the Guardian Pro without a Smart Phone or Tablet?No, a Smart Phone or Tablet is required to communicate with the device.
How do I enable the Bluetooth Signal?
Quickly double-tap the Start/Stop button on the front of the device
How is the time set on the logger?
During configuration, the time on the mobile app is sent to the logger
Can I clear the memory without the mobile app?
No. Data can only be deleted with the mobile apps.
Can I download data multiple times?
Yes, data is not cleared from memory until the device is reconfigured
What issues could affect battery life?
Communication interval, extended loss of connectivity, environmental conditions (i.e. ambient Temp), time in alarm, and excessive bluetooth signal enabling
During battery replacement, how to ensure no lost data?
Change batteries within time of logging interval. Each device will maintain stored data not yet transitted even after battery removal and replacement.
When should I replace the batteries in my TraceableGO™ Dataloggers?
We recommend changing batteries when the battery level is at 25% or lower to avoid losing power during a trip.
Is there a battery replacement procedure?
Simply replace the two exhausted AA alkaline batteries with two fresh AA alkaline batteries.
- Place instrument into intended environment.
- Press START to begin monitoring.
- To Download Data, visit the appliance and double-press START/STOP to enable Bluetooth and export the data using the mobile app.
- The mobile app immediately identifies if the contents experienced conditions outside user-defined parameters.
