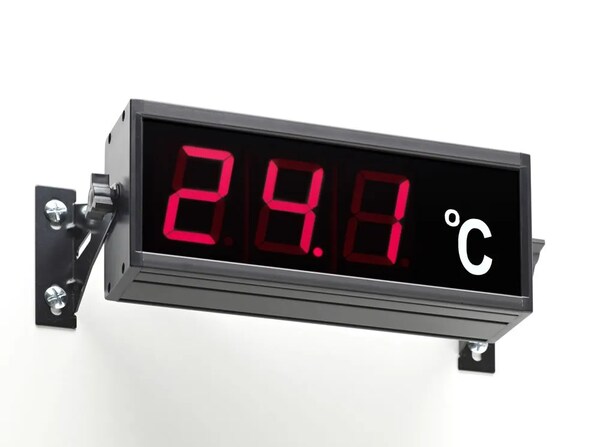

🟡 6″ Large Digit "K" Thermocouple Meter

(0)No Reviews yet
Log in to see price
SKU: EAGMTR001P01
Provided: Each

High-visibility thermocouple display for indoor monitoring

Quick Specs

  • 🟡 Input Type: Type K thermocouple (others supported, see below)

  • 🌡 Display Range: 32 to 99 °F

  • 🖥 Digit Height: 6 in (152 mm) • 2-digit display

  • 👁 Viewing Distance: Up to 65 ft (20 m)

  • 🏠 Use: Indoor

  • 🧱 Mounting: Wall mount (side brackets included)

  • 🔌 Power: 110/120 VAC with 6 ft UL-listed power cord

  • 🎯 Accuracy: ±0.5% FS ±1 digit (thermocouple)

  • ⏱ Decimal Point: Available for low-scale ranges

  • 📦 Availability: Special order • approx. 2–3 week delivery

🌡 Thermocouple Types: 🟡 K, ⚫ J, 🔵 T

Extended Capabilities

  • 🔔 Alarm Output: HI or LO trip via 3A SPCO relay

  • 📡 Serial Output Options: RS-232, RS-422, RS-485, MODBUS, ASCII

  • 🔁 Re-Transmission Outputs:

    • 0–20 mA, 4–20 mA

    • 1–5 VDC, 0–10 VDC

  • ⚡ Power Options (model dependent):

    • 95–265 VAC, 24 VAC, 12 VDC, 24 VDC

Supported Scale Ranges

  • Thermocouple

    • J: 0–750 °C / 32–1382 °F

    • K: 0–1200 °C / 32–2192 °F

  • RTD (Pt100, 2/3-wire)

    • −200 to 400 °C / −328 to 572 °F

    • 0 to 99.9 °C / 32 to 212 °F

📦 Browse the related products below, explore compatible thermocouples, alarms, and output accessories that integrate seamlessly with this meter.


🛒 Add to Cart Now or 📞 Call 1-800-TIP-TEMP for expert guidance.

Notable Features

Back

✅ Large 6″ digits for clear long-distance viewing
✅ Designed for Type K thermocouple measurement
✅ Wall-mounted indoor display for facilities and process areas
✅ Multiple alarm, output, and communication options
✅ Suitable for business, calibration, and industrial environments

  • Input Thermocouple
  • Decimal point for low scale ranges
  • Degrees C or F scale ranges
  • Wall or Panel Mounting options
  • Digit heights 2.3”(58mm), 4”(102mm), 6”(152mm), 8”(203mm), 12”(305mm), 14”(355mm), 16”405mm), 18”(457mm)
  • Viewing distances from 65ft (20meters)

Power Supply Options

  • 95-265Vac, 24Vac, 12Vdc, 24Vdc

Alarm Output Options

  • HI or LO trip via 3A SPCO relay

Serial Output Options

  • RS-232, RS-422, RS-485, MODBUS, ASCII protocol

Re-Transmission Output Option

  • 0-20mA, 4-20mA, 1-5Vdc, 0-10Vdc

Accuracy

  • Thermocouple +/- 0.5% FS +/- 1 digit
  • PT100 (RTD) +/- 0.25% FS +/- 0.5 digit

Scale Ranges

  • Thermocouple
    • J: 0-750 C / 32-1382 F
    • K: 0-1200 C / 32-2192 F
  • PT100 / RTD
    • 2/3 wire -200~400 C / -328~572 F, 0~99.9 C / 32~212 F
Back

Viewing Distances

  • 2.0″ – 20 meters/65 feet
  • 3.0" – 30 meters/100 feet
  • 4.0″ – 40 meters/130 feet
  • 6.0″ – 60 meters/196 feet
  • 7.0″ – 70 meters/230 feet
  • 8.0″ – 80 meters/262 feet
  • 14.0″ – 140 meters/460 feet
  • 16.0″ – 160 meters/525 feet
  • 18.0″ – 180 meters 600 feet

Back
