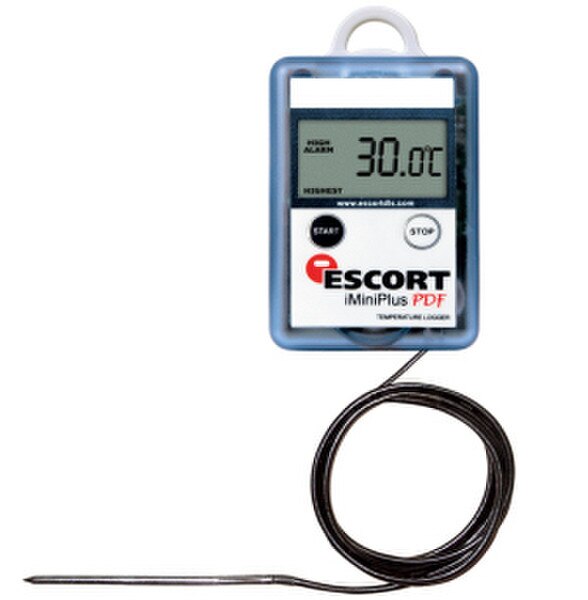

iMini Plus PDF Logger with External Sensor
Easy Download and Programming. View a Sample Report Snapshot
Your Intelligent Mini logger can plug directly into the USB of your PC for programming and data download. ESCORT Console software is included and makes it is easy to program the Intelligent Mini loggers.
Use this device for Transport of temperature sensitive cargo. Storage of perishable goods. Monitoring of chilled food. Escort Console software and accessories compatible. Can be programmed in either Celsius or Fahrenheit.
Type of Sensor: | Thermistor |
Temperature Sensing Range: | -40°F ~ 158°F (-40°C ~ 70°C) |
Temperature Accuracy: | +/- 1°F (+/- 0.5°C) typical |
Temperature Resolution: | 0.1° |
Temperature Scale: | °F and °C |
Sensor Wire Length: | 36" Cable |
Min/Max Memory: | Yes |
Dimensions: | 3 1/4" x 2 1/4" x 3/4" |
Weight: | 0.3 Lbs |
Calibration Available: | Yes (purchased separately) |
Battery Life: | 1-2 years operating (depending on usage) |
IP Rating: | IP65 (with plastic cap over USB connector) |
Special Notes: | Software Download Required |
Number of Sensors: | 1 |
Data Points: | 8048 samples |
Recording Rate: | 5 seconds – 18hours |
Display: | LCD |
Requires Software: | YES |
Software Type: | Need PDF reader only to view log trip report. ESCORT Console to program and secure download |
Network Connectivity: | N/A |
Software Download Required
Download Programming Software for ESCREC007
Start Button
Start recording cycle, or countdown to the start, by holding down the button for over one second. Scroll through the statistics on the multi-functional display by pushing the button during the logging cycle.
Multi-functional Display
Alarm status is always visible. Analyze recorded data by viewing the statistics on the multi functional display: First button push for highest, average and lowest reading, second push for time spent over and under specification limits. Standard display shows the latest reading, or the status of the logger (rdy when ready to start, d when waiting, f for delayed start, Stop after finishing recording)
Replaceable Battery
The logger battery typically lasts 1 to 2 years and can easily be replaced without loss of data.
