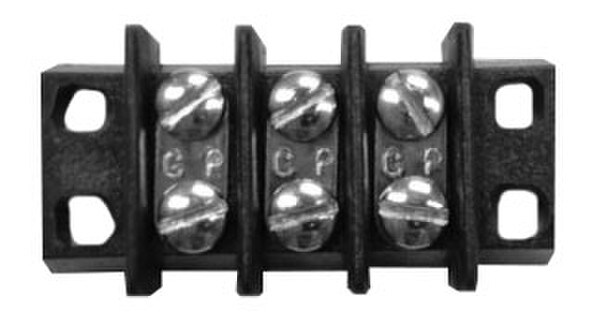

๐Ÿงฐ 3-Point RTD Terminal Block

$6.95
QuantityPrice
1 โ€“ 9$6.95
10 โ€“ 24$6.60
25 โ€“ 49$6.26
50 โ€“ 74$5.91
75 โ€“ 99$5.73
100 +$5.56
SKU: HEAACC019
Provided: Each

Glass-Filled Nylon Terminal Block with Copper Lugs

โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€

Quick Specs

๐Ÿงฎ Connection Points: 3

๐Ÿ”ฉ Lugs: Nickel-Plated Copper

๐Ÿ›ก๏ธ Body Material: Glass-Filled Nylon

๐Ÿ”ฅ Max Temperature: 350ยฐF to 400ยฐF (177ยฐC to 204ยฐC)

๐Ÿ“ Length: 2.125"

๐Ÿ“ Width: 1.125"

๐ŸŒก Application: RTD & Non-Thermocouple Wiring

โš ๏ธ Thermocouple Use: Not Recommended

๐Ÿงฐ Configuration: 1 Three-Point Terminal Block

๐Ÿ“ž Additional Sizes: Available Upon Request

โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€

Compliance & Risk Mitigation

๐Ÿ›ก Supports secure RTD connections

๐Ÿ”ฉ Helps maintain reliable wire termination

๐ŸŒก Supports RTD measurement integrity

โš ๏ธ Avoids improper thermocouple connections

๐Ÿ”ง Simplifies inspection and maintenance

๐Ÿ“‹ Supports organized control-panel wiring

This terminal block uses copper-based connections and is intended for RTD and other compatible non-thermocouple circuits. Verify wiring and temperature requirements before installation.

โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€

Related Product Suggestions

๐ŸŒก RTD sensors and probe assemblies

๐Ÿงต 3-conductor RTD extension wire

๐Ÿ”Œ RTD plugs and jacks

๐Ÿงฎ Multi-circuit RTD connector panels

โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€

๐Ÿ›’ Add to Cart Now or ๐Ÿ“ž Call 1-800-TIP-TEMP (847-8367) for expert guidance.

Notable Features

BusinessRTDSparePartTT Verified
Back

The 3-Point RTD Terminal Block provides a compact connection point for RTD sensors, extension wiring, and other non-thermocouple signal applications. Three nickel-plated copper lugs provide secure electrical connections, while the glass-filled nylon body offers durability for industrial temperature measurement and instrumentation installations.

โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€

Ideal Applications

๐ŸŒก RTD sensor connections

๐Ÿงต RTD extension wiring

โš™๏ธ Temperature instrumentation

๐Ÿญ Industrial control panels

๐Ÿ”ง Equipment wiring and assembly

๐Ÿ“ฆ OEM temperature systems

Back
  • Has nickel plated copper lugs installed in each section. For non-thermocouple applications.
  • Length: 2.125" x Width 1.125"
  • Made of the glass-filled Nylon  (350ยฐ F. - 400ยฐ F. Max.)
  • Call for additional sizes.
Back
(1) 3 Point Terminal Block
