Panel Mount Volt Meter

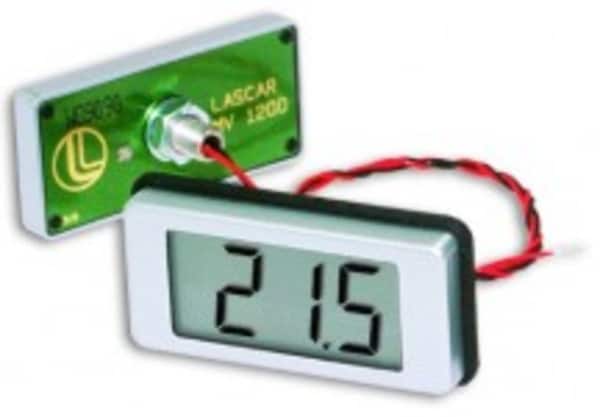

The EMV 1200 is a signal powered 3 digit LCD voltmeter with 12.5mm (0.5") digit height. It features a 4 to 25Vd.c. range. The meter can be panel mounted by drilling a 5.5mm (0.22") hole. Connection to the meter is via two wires. This is a popular part, normally stocked in high quantity and suitable for new designs.
- Part number LASDPM001
- 3 Digit LCD Meter
- 4 to 25V Full Scale Reading
- Signal Powered
- 2 Wire Operation
- Round Hole Mounting
- Accuracy (overall error): 0.2V (+/- 1 count)
- Linearity: +/- 1 count
- Valid displayed reading: 4.0 to 25.0V d.c.
- Resolution: 100mV d.c.
- Sample rate: 3 samples/second
- Operating temperature range: 0 to 50°C
- Supply voltage: 3 to 50V d.c.
- Supply current: 3 mA
- Display Digit Height: 12.5mm (0.5")
