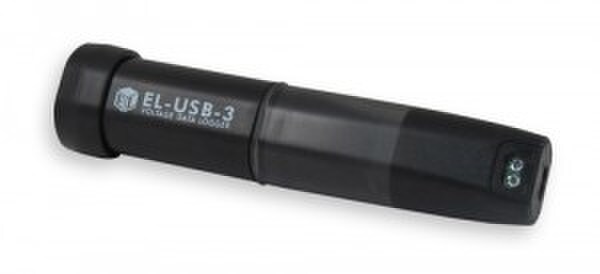

USB Voltage Data Logger
No cable required, plugs into USB port. Great for battery testing and trouble shooting. This data logger measures and stores up to 32,510 voltage readings over a 0 - 30VDC measurement range. The user can easily set up the logging rate and start-time, and download the stored data by plugging the module straight into a PC's USB port and running the purpose designed software under Windows 98/2000/XP/Vista/Windows 7. The data can then be graphed, printed or exported to other applications. The data logger is supplied with long-life replaceable 1/2 AA 3.6V lithium battery, allowing the unit to log data continually for at least one year. Correct functioning of the unit is indicated by flashing red and green LED's. The data logger features a pair of screw terminals and is supplied complete with a set of measurement leads terminating in crocodile clips.
Measurement range 0 to 30 V d.c.
Internal resolution 50 mV d.c.
Accuracy (overall error) ±1%
Logging rate User selectable between 1 second & 12 hours
Operating temperature range -35 to +80°C (-31 to +176°F)
Readings 32,510
Dimensions 98 x 26.8 x 26.8 mm
Free data reporting software included
Selectable alarm thresholds
LED's indicate logger status
Enviromental protection to IP 67
Supplied with lithuim battery
Battery life: 1 year typical
- USB Voltage Data Logger
- Software
- 1/2 AA Battery
- Instructions
- Expert Technical Support
