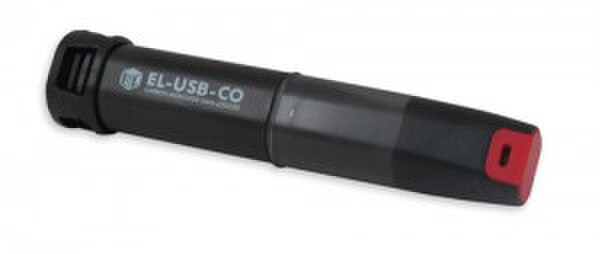

Carbon Monoxide USB Data Logger and Audible Alarm

(0)No Reviews yet
$155.49
QuantityPrice
1 – 9$155.49
10 – 24$128.68
25 – 49$121.91
50 – 99$115.13
100 +$108.36
SKU: LASREC005
Provided: Each

Notable Features

Carbon Monoxide (CO) is a poisonous gas, both odorless and colorless, found anywhere from construction sites and furnace rooms to office blocks and homes. TIPTEMP's data logger monitors and records CO levels in an environment over a period of time, helping users to determine where and when CO levels peak and allowing corrective action to be carried out.

The LASREC005 stores over 32,000 readings and can record CO levels from 0 to 1000 ppm. Setup of the data logger is done using the supplied software. Assign the logger a name and choose a sample rate (from a choice of once every: 10 secs, 30 secs, 1 mins, 5 mins). The unit's bright red LED will flash and an optional buzzer can sound if the user presets a high level warning alarm.

When data logging is complete, re-insert the logger into the computer USB port. Data is downloaded using the EL-USB software and is saved in a .txt file. This can be viewed as a graph within the software or exported to a spreadsheet software package for further analysis.

The LASREC005 is a professional measuring instrument, designed to record Carbon Monoxide (CO) gas levels for later analysis. It is not an alarm/safety/warning device and should not be used in this capacity. If you would like further information about the warnings associated with use of this device, consult TIPTEMP's data sheet and/or the documentation supplied with the product.

The user can easily set up the logging rate and start time, and download the stored data by plugging the module straight into a PC's USB port and running the purpose designed software under Windows 98, 2000 or XP. The data can then be graphed, printed and exported to other applications. The data logger is supplied complete with a long-life lithium battery. Data is stored in non-volatile memory and is not lost when the battery is empty. A bright red LED will flash and a buzzer can sound when a preset warning level has been exceeded.
  • Part number LASREC005
  • 0 to 1000 ppm CO measurement Range
  • Stores up to 32510 Measurements
  • USB Interface for Set-up and Data Download
  • Expected sensor life: 4 years
  • Replaceable Internal Lithium Battery
  • Supplied with data logger instructions software and 1/2 AA battery
  • Data Logger
  • Instructions
  • Software
  • Instructions
  • Battery
How to Set Up Logger VideoHow to Use Logger Video
