Temperature Humidity Logger LCD Display

(0)No Reviews yet
1 – 9$189.49
10 – 24$180.02
25 – 49$170.54
50 – 74$161.07
75 – 99$156.33
100 +$151.59
Provided: Each
-22°F ~ 176°F (-30°C ~ 80°C) +/- 0.5°C
Humidity 0 ~ 100% +/-3%
• Rugged and robust, IP67 construction
• Logging rates between 10 seconds and 1 hour
• Stores over 250,000 readings
• On screen menu and graphing to start, stop, review and restart the logger in the field
• Micro USB interface for PC based set-up and data download
• Immediate, delayed, push-button or temperature/RH triggered start mode
• User-programmable alarm thresholds
• Graphic LCD shows real-time readings, graph and current status
• Resettable Min/Max readings may be viewed on the LCD
• User set audible alarm
• Highly visible confidence/alarm LEDs
• Supplied with user replaceable ½ AA batteries


Current Stock: 1

Notable Features

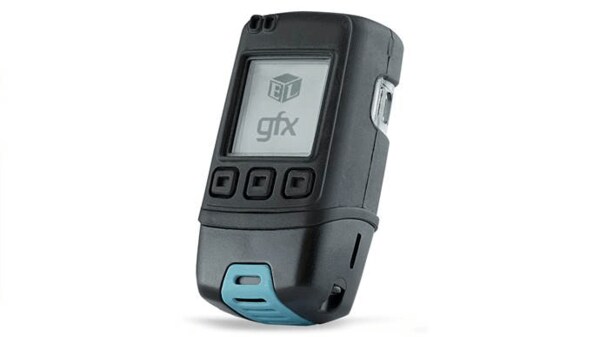

Temperature and Relative Humidity Data Logger with Graphic LCD Display. Using internal probe to measure temperatures from -22 to +176°F with resolution of 0.1°C, standalone EL-GFX-2 can store 250,000+ readings and incorporates highly visible LEDs as well as audible alarm. LCD shows real-time readings, graphs, and current status, while micro USB port enables PC-based setup and data download. Users can start, stop, and restart datalogger using on-screen menus, and temperature-triggered start conserves memory by recording only when sensors reach set-point.
Type of Sensor: Thermistor
Temperature Sensing Range: -22°F ~ 176°F (-30°C ~ 80°C)
Temperature Accuracy: +/- 1°F (+/- 0.5°C) typical
Temperature Resolution: 0.1°
Temperature Scale: °F and °C
Humidity Range: 0 - 100%
Humidity Accuracy: ±3%
Humidity Resolution: 0.1
Min/Max Memory: Yes
Dimensions: 3.46"H x 1.91"W x 1.20"D
Weight: .4
Calibration Available: Yes (purchased separately)
Power: 2 x ½AA 3.6V Lithium Battery Life
Battery Life: 1 Year Typical
IP Rating: IP 67
Sampling Rate: Every 10 sec to Every Hour
  • Temperature & Humidity Logger
  • Micro USB Cable
  • Mounting Clip
  • (2) 1/2 "AA" Lithium Batteries
  • PC Compatible Software (Download)
  • Expert Technical Support
How to Set Up Logger VideoHow to Use Logger Video
