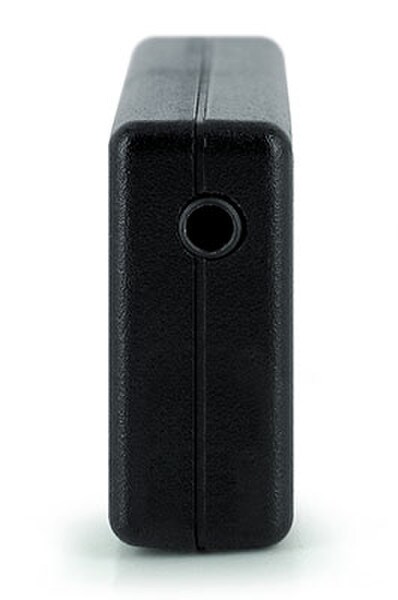

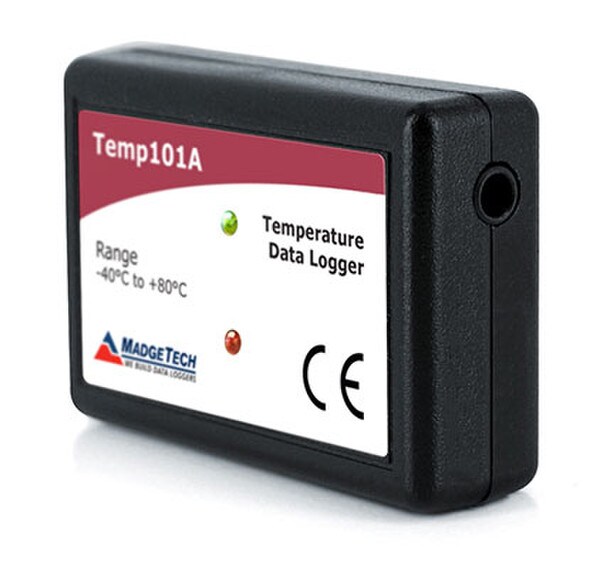

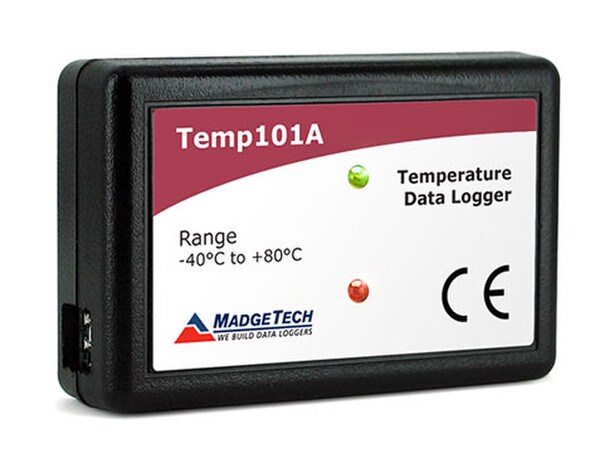

TEMP101A Temperature Data Logger
The Temp101A is a compact temperature data logger that measures from -40 °C to 80 °C (-40 °F to 176 °F) with ±0.5 °C accuracy. It offers programmable high/low alarms and can be scheduled to start up to 18 months in advance. With a 10-year battery and capacity for over 2 million time-stamped readings, it is suited for long-term monitoring. The device works with MadgeTech 4 Software for easy setup, data retrieval, and analysis in graphical, tabular, or summary formats with customizable units.
| Specification | Details |
|---|---|
| Memory | 2,095,104 readings |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Alarm | Yes |
| Baud Rate | 115,200 |
| LED Indicators | Red & Green |
| Push-Button Start | Yes |
| Single/Multi-Use | Multi-use |
| Battery Life | 10 years typical at a 15-minute reading rate |
| Material | Polycarbonate |
| Dimensions | 1.4 in × 2.1 in × 0.6 in (35 mm × 54 mm × 15 mm) |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0–95% RH non-condensing |
| Required Interface | IFC200 |
| Approvals | CE |
| Temperature Sensor | Precision RTD Element |
- User Guide
- Contact us at 1 (800) TIP-TEMP or techinfo@tiptemp.com for support
