Intrinsically Safe Temperature Data Logger

(0)No Reviews yet
$289.00
QuantityPrice
1 – 9$289.00
10 – 24$274.55
25 – 49$260.10
50 – 74$245.65
75 – 99$238.43
100 +$231.20
SKU: MATREC151
Provided: Each
Temperature Range: -40°C ~ 80°C (-40°F ~ 176°F)
Dimensions: 4.3” x 1.0” dia. (110mm x 26mm dia.
  • Includes NIST Calibration Certificate

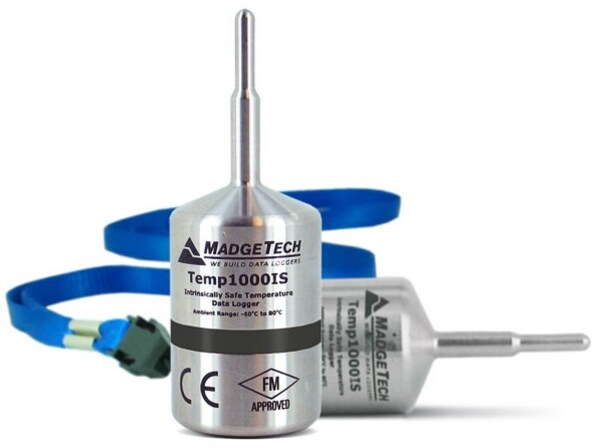

  • Temp1000IS Intrinsically Safe Temperature Data Logger
  • Resolution: 0.1°C
  • Calibrated Accuracy: ±0.5°C (0 to 50°C)
  • Reading Rate: One reading every 2 seconds to one every 12 hours
  • Start Modes: immediate start or delay start up to 6 months in advance
  • Memory: 32,767 readings
  • Battery Type: 3.6V lithium battery included; user replaceable
  • Battery Life: 1 year typical (25°C, 1-minute reading rate)
  • Data Format: Date and time stamped ºC, ºF, K, ºR
  • Time Accuracy: ±1 minute/month (at 20°C)
  • Computer Interface: PC serial or USB (interface cable required), 2,400 baud
  • Software: XP SP3/Vista/Windows 7
  • Operating Environment: -40°C to 80°C, 0 to 100%RH (properly sealed)
  • Materials: Available in Anodized Aluminum or 304 Stainless Steel

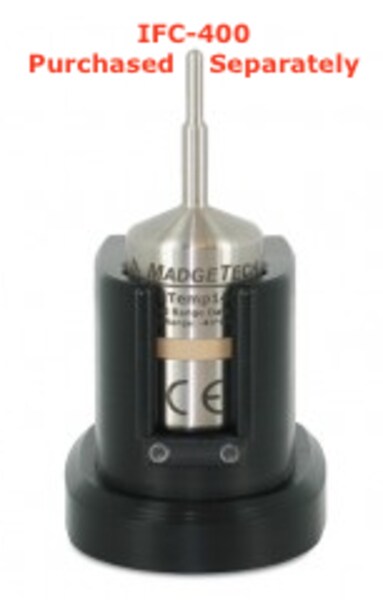

Requires  IFC-400 Docking Station & Software: Item MATACC110


Notable Features

The MATREC151 temperature logger is a rugged, submersible (NEMA 6P), battery powered, stand alone device which can be used to automatically record temperatures between –40 and 80°C. This all in one compact, portable, easy to use device is able to measure and record up to 32,767 temperature measurements. The MATREC151 has been Factory Mutual certified as intrinsically safe for Class I, Division 1, groups A, B, C and D and non-incendive for Class I, Division 2, groups A, B, C and D hazardous environments. This certification makes the device ideal for uses such as EtO sterilization, environmental studies and numerous other hostile environment applications. Its real time clock ensures that all the data is time and date stamped. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. The device can be started and stopped directly from your computer and its small size allows it to fit almost anywhere. The MATREC151 makes data retrieval quick and easy. Simply plug the device into an empty COM or USB port and our user-friendly software does the rest.
Type of Sensor: RTD
Temperature Sensing Range: -40°F ~ 176°F ( -40°C ~ 80°C )
Temperature Accuracy: +/- 1°F (+/- 0.5°C) typical
Temperature Resolution: 0.01°
Temperature Scale: °F and °C
Dimensions: 4.3” x 1.0” dia. (110mm x 26mm dia.)
Weight: 0.5 lbs
Calibration Available: Yes (purchased separately)
Battery Life: 1 year typical (25°C, 1 minute reading rate)
IP Rating: (Not Rated) Caution: Do not submerge this product to retain IS rating.
Special Notes: Start Modes: immediate start or delay start up to 6 months in advance
Storage Conditions: Operating Environment: -40°C to 80°C, 0 to 100%RH (properly sealed)
Data Points: 32,767 readings
Exportable Data: Yes
Requires Software: YES
Software Type: Windows
  • Data Logger
  • Battery
  • Includes NIST Calibration Certificate
  • Expert Technical Support
Requires the Purchase of Software & IFC-400  MATACC110
