ThermoVault Extreme Temp Data Logger

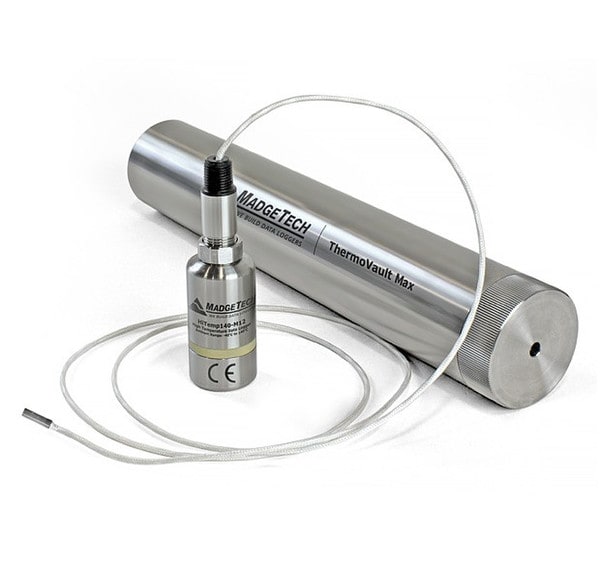

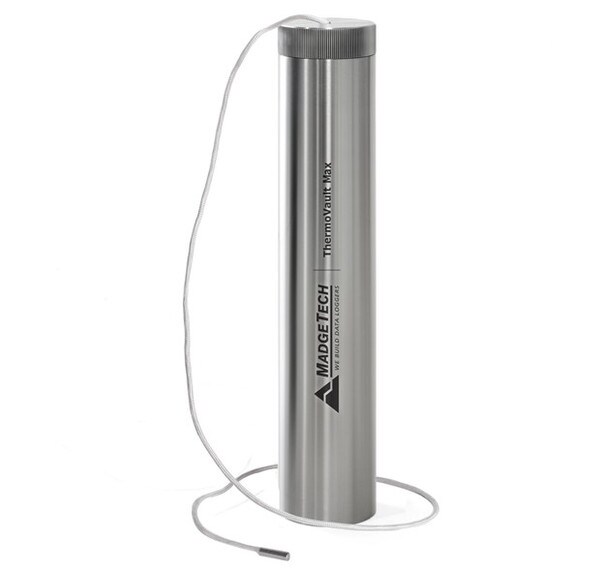

Capable of withstanding and measuring temperatures up to 400 °C, the ThermoVault Max can record throughout the entire depyrogenation process. The data logger features the popular rugged steel body design of with the flexibility to utilize dozens of RTD probe options.
The software allows for fast and easy data logger configuration. Simply insert the data logger into the docking station (sold separately), choose either immediate or delay start and the desired reading rate. Insert the data logger onto the ThermoVault Max enclosure and screw the cap back on securely. The device is ready to be deployed.
The software allows for fast and easy data logger configuration. Simply insert the data logger into the docking station (sold separately), choose either immediate or delay start and the desired reading rate. Insert the data logger onto the ThermoVault Max enclosure and screw the cap back on securely. The device is ready to be deployed.
| Type of Sensor: | RTD |
| Temperature Sensing Range: | -328°F ~ 752°F (-200°C ~ 400°C) |
| Temperature Accuracy: | ±0.015 Ω, ±0.05 °C (±0.09 °F) (Probe Dependent) |
| Temperature Resolution: | 0.01° |
| Temperature Scale: | °F or °C |
| Sensor Wire Length: | 36 inches |
| Dimensions: | 1.75 in OD x 9.6 in L (44.45 mm OD x 243.8 mm L) |
| Weight: | 3 lbs. |
| Calibration Available: | Yes (included) |
| Battery Life: | 2 years typical (1 minute reading rate at +25 °C / +77 °F) |
| IP Rating: | IP40 - logger alone (with no probe connected) The logger will inherit IP rating of the attached probe (up to, and including IP68/IP69K). |
| Special Notes: | CE Approval. Max Sustainable Pressure 60 PSIA |
| Number of Sensors: | ONE |
| Data Points: | 43,690 |
| Exportable Data: | Yes |
| Recording Rate: | 4 readings per second up to 1 reading every 24 hours |
| Display: | None |
| Requires Software: | YES |
| Software Type: | Windows |
| Network Connectivity: | USB |
| Thermocouple Type: | RTD |
| Sheath Material: | 316 Stainless Steel |

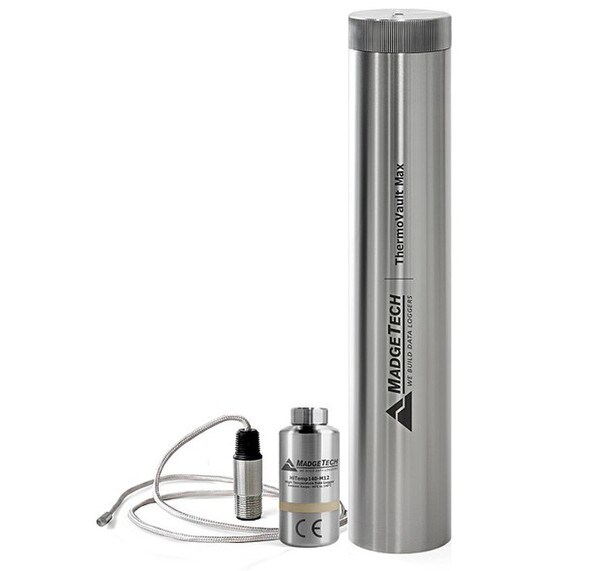

- (1) ThermoVault Max Extreme Temperature Thermal Barrier
- (1) HITEMP 140 M12 Data Logger
- (1) 36 inch Glass Braided RTD
| Time vs. Temperature Chart | |
| Ambient Temperature | Maximum Exposure Time (air) |
| -200 °C | 128 minutes |
| -180 °C | 137 minutes |
| -160 °C | 148 minutes |
| -140 °C | 163 minutes |
| -120 °C | 183 minutes |
| -100 °C | 213 minutes |
| -80 °C | 263 minutes |
| -60 °C | 368 minutes |
| -40 °C to +140 °C | Indefinitely |
| 150 °C | 601 minutes |
| 160 °C | 468 minutes |
| 170 °C | 396 minutes |
| 180 °C | 348 minutes |
| 190 °C | 313 minutes |
| 200 °C | 286 minutes |
| 210 °C | 265 minutes |
| 220 °C | 247 minutes |
| 230 °C | 233 minutes |
| 240 °C | 220 minutes |
| 250 °C | 209 minutes |
| 260 °C | 200 minutes |
| 270 °C | 192 minutes |
| 280 °C | 184 minutes |
| 290 °C | 178 minutes |
| 300 °C | 172 minutes |
| 310 °C | 166 minutes |
| 320 °C | 161 minutes |
| 330 °C | 157 minutes |
| 340 °C | 153 minutes |
| 350 °C - 400 °C | 60 minutes |
