🔥💨 Dry Contact Smoke Detector
Key Features
✅ Photoelectric sensing reduces nuisance alarms while improving early smoke detection
✅ Dual dry-contact relays integrate directly with Sensaphone or other monitoring systems
✅ Hard-wired 120 VAC power with 9 V battery backup for uninterrupted operation
✅ Temporal-3 evacuation pattern meets modern life-safety notification standards
✅ Connect up to 12 detectors for multi-room or facility-wide coverage
✅ Built-in 10-year end-of-life indicator supports long-term maintenance planning
✅ Tool-free testing with push-button self-test and functional test modes
✅ Includes dust cover to protect the sensing chamber during installation

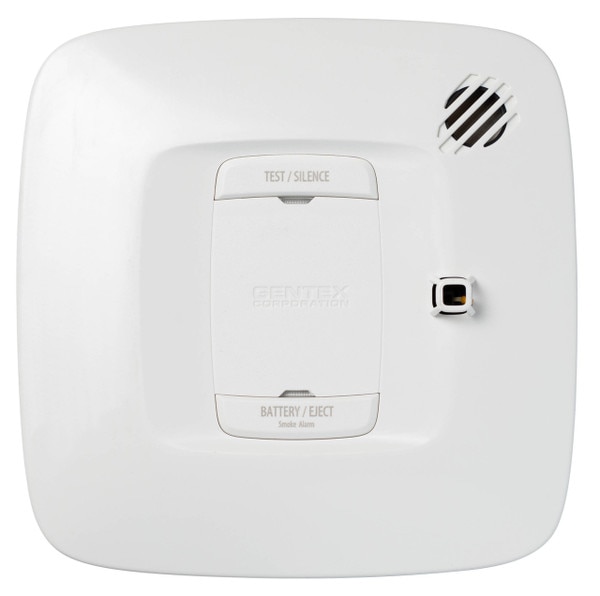

The Smoke Detector is designed for use in commercial and residential applications and is engineered to virtually eliminate nuisance alarms and deliver outstanding performance wherever reliable smoke detection is required. Up to 12 devices can be connected together and report to one zone. An 85 dBA audible horn and 9V battery backup is included.
Operating Temperature 40° to 100°F | 4° to 37°C Alarm Horn Rating Meets or exceeds 85dBA at 10’ Certifi cations/Compliance ANSI/UL 217 Listed, NFPA 72, IBC/IFC/IRC Dimensions 5.5” x 5.5” x 1.75” | 140 x 140 x 45mm Power 120VAC 60Hz (9V Battery backup included) Auxilary Relay One Form-A and one Form-C relay output (1.0 A @ 30VDC, 0.3 A @ 125VAC) Tandem Interconnect 12 Max. Up to 125’ between each alarm. 1125’ max distance from fi rst to last
