Sentinel 12 Channel Cellular Package

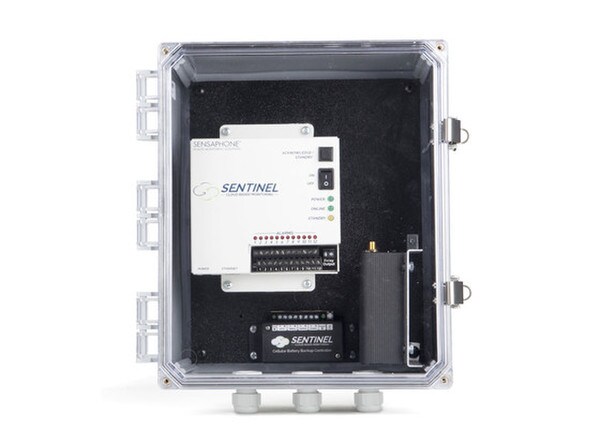

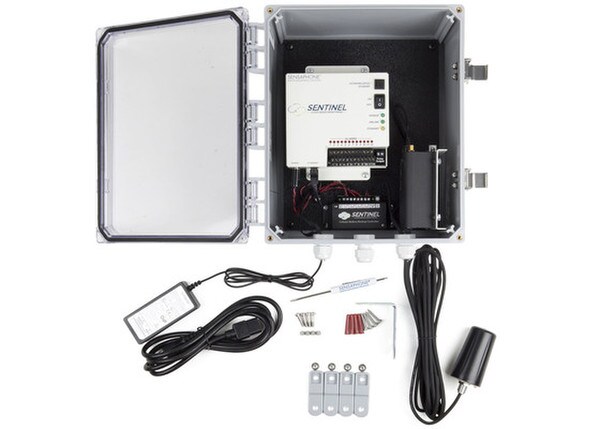

Sentinel 12 Channel Cellular Monitoring System
**Verizon Network version**
The Sentinel Monitoring System with Cellular Modem offers an easy-to-install, easy-to-configure monitoring solution for locations with no access to a landline or Internet connection. The Sentinel system monitors up to 12 different environmental and equipment status conditions including temperature, humidity, power failure and water detection. When the system identifies issues, it instantly sends alerts via phone, text or email over a cellular connection. It can also deliver daily event reports, and provide audit logs. Users can access information and make system changes from any web-enabled device. The system stores all readings in the cloud, which protects against data loss, provides unlimited information storage and allows multiple devices to be managed from one account. No software is required, so installation, integration and management are easy.
**Verizon Network version**
The Sentinel Monitoring System with Cellular Modem offers an easy-to-install, easy-to-configure monitoring solution for locations with no access to a landline or Internet connection. The Sentinel system monitors up to 12 different environmental and equipment status conditions including temperature, humidity, power failure and water detection. When the system identifies issues, it instantly sends alerts via phone, text or email over a cellular connection. It can also deliver daily event reports, and provide audit logs. Users can access information and make system changes from any web-enabled device. The system stores all readings in the cloud, which protects against data loss, provides unlimited information storage and allows multiple devices to be managed from one account. No software is required, so installation, integration and management are easy.
| Temperature Sensing Range: | -109° ~ 168°F (-85° ~ 76°C) |
| Operating Temperature Range: | -40F ~ 176°F (-40 ~ 80°C) |
| Temperature Accuracy: | +/- 1°F (+/- 0.5°C) typical |
| Temperature Scale: | °F or °C |
| Dimensions: | 12.5 x 12.2 x 7.0” (318 x 310 x 178mm) |
| Weight: | 10.5lbs. (4.7kg) |
| Calibration Available: | Yes (purchased separately) |
| Power: | 12VDC plug-in power supply |
| Battery Life: | 8-Hour rechargeable battery backup for both the Sentinel & Cellular modem included |
| Battery Backup: | Yes |
| Sampling Rate: | Programmable sampling Interval - 1 min to 24 hrs |
| Number of Sensors: | 12 |
| Exportable Data: | Yes |
| Recording Rate: | Programmable sampling Interval - 1 min to 24 hrs |
| Network Connectivity: | Cellular |
- Internal rechargeable battery-backup system will provide 8 hours of continuous monitoring and alerting in the event of a power outage.
- Power failure monitoring
- Weatherproof NEMA 4-X enclosure
- 12 Channel Sentinel Monitor
- Ambient Temperature Sensor on Channel #1
- Optional Sensors
- Expert Technical Support
How to set up:
Cellular Activation form comes with the unit that must be populated/filled out. When completed the form is returned to Sensaphone.
They set up the account and notify you that its ready to be used.
The client just turns the SNPALM010 and connects the sensors.
On your computer visit www.sensaphone.net
Set up account and configure the SNPALM010.
Cellular Activation form comes with the unit that must be populated/filled out. When completed the form is returned to Sensaphone.
They set up the account and notify you that its ready to be used.
The client just turns the SNPALM010 and connects the sensors.
On your computer visit www.sensaphone.net
Set up account and configure the SNPALM010.
- Fill out Cellular Activation form provided with new system.
- Once activated, create online account.
- Install system and sensors respectively.
- Configure sensors through online account.
Note: Client must choose the Cellular Service.
SCD-1200-1YCell = $299.40
SCD-1200-1MCell - $24.95 month
See user manual for more detailed walk-through.
