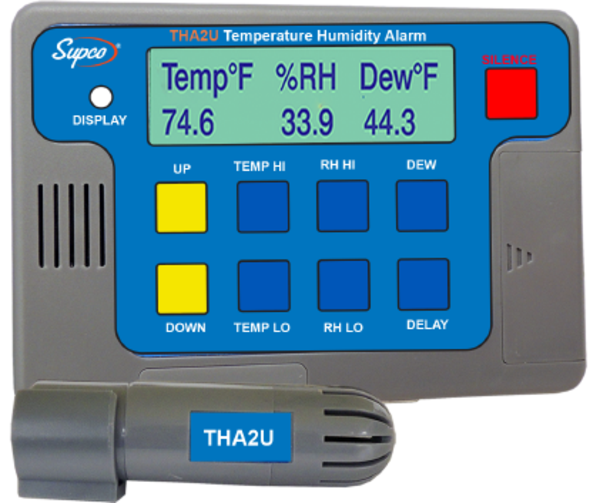

Temperature / Humidity Logger & Alarm
Temperature and Humidity Recorder Features: flexible mounting hanger to secure recorder to any irregular surface, pull tab to Start, detachable duplicate job information form, unique serial number on chart and recorder for positive identification, NIST Traceable Calibration available upon request.
- Part Number: SUPREC001
- Sample Rate: 1 second to 30 minutes
- Data History Storage: 2 hours to 170 days depending on Sample Rate
- Memory Capacity: 8150 Samples for Temperature Humidity and Dew Point
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Operating Humidity Range: 0 to 95% RH non-condensing
- Temperature Accuracy: 0.1°F or °C
- Temperature Resolution: 0.1°F or °C
- Humidity Accuracy: +/- 2% RH
- Humidity Resolution: 0.1% RH
- Calibration: User Calibration for Temperature and Humidity
- Dimensions: 3.88"L; 1.1"D
- Weight: 0.9 ounces
- Cable Length: 300 ft. Maximum
- Operating Temperature Range: 32°F to 130°F (0°C to 54°C)
- Storage Temperature: 0°F to 130°F (-18°C to 54°C)
- Operating Humidity: 0% RH to 95% RH non-condensing
- Power Source: 12 Volt to 24 Volt AC/DC 0.78 Watt Alarm Active
- Battery Backup: 9V Alkaline Battery - 35 Hours of Operation during Power Outage
- Clock Battery: CR2032 10 Years typical
- Relay: N.O. and N.C. Dry Contact 5A 250 Volt Restive Load
- Dimensions: 5.5" x 4.5" x 1.6"
- Weight( w/o battery backup): 8.6 ounces
- Temperature Alarm: High and Low Temperature and Humidity Alarms Condensation Alarm. (80db Tone)
- Alarm Delay: User selectable up to 2 hours
- Alarm Indication: Audio Visual and a Relay for Remote Alarm and Phone Dialer
- Sensor probe is not designed for continuous exposure to high humidity or caustic and/or corrosive chemicals such as but not limited to concrete or chlorine
- Ideal for Laboratory, Florist and Storage Areas
- Digital Display
- Relay contacts for remote alarm or auto dialer (ADTA)
- PC software included
- Remote sensor 15 ft included can extend up to 300 ft.
- Power supply included
