Temperature Chart Recorder (Displays °C) (110/120V)

(0)No Reviews yet
$484.27 $573.97
QuantityPrice
1 – 9$484.27
10 – 24$460.06
25 – 49$435.84
50 – 74$411.63
75 – 99$399.52
100 +$387.42
SKU: SUPREC005
Provided: Each
CR87B110C: Temp Range: -40 ~ 50°C

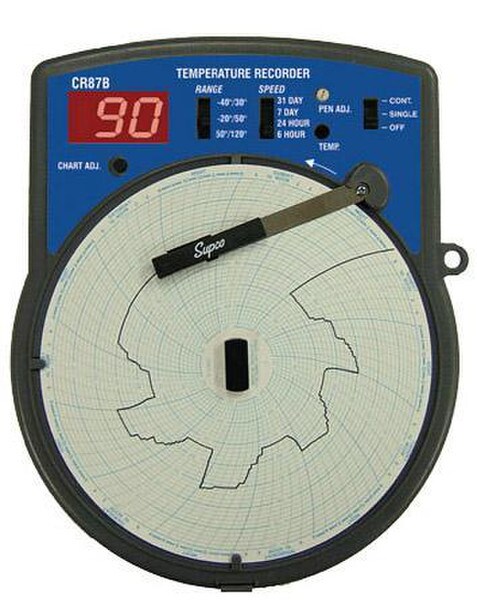

Temperature Chart Recorder with External Probe
User selectable 6 hour, 24 hour, 7 Day and 31 Days chart speeds.
NIST Calibration Available

Notable Features

The Newly Designed CR87B110C Temperature Recorder with remote sensor employs an advanced micro-controller design that enables this versatile instrument to accurately measure and record temperatures in air, gas, liquids, powders, solids, and semi-solids. Recordings can be made from any distance up to 100 feet away by using optional long-length thermocouple wire. Two selector switches on the face panel allow for recording 3 different temperature ranges at 4 different recording speeds.

Applications: * Food Storage * Environment, Energy Management * HVAC, Refrigeration Maintenance * General Laboratory Monitoring * Computer Room Monitoring * Ovens, Dryers, Paint Booths

  • SKU Number: SUPREC005
  • Display in Degree Centigrade
  • Advanced micro-controller design
  • Large led digital temperature display
  • 3 temperature ranges and 4 chart speeds
  • Front panel selectable single turn or continuous chart rotation
  • All controls are located on the front panel for fast and easy setup
  • Furnished complete with 2 cartridge pens and 60 6" diameter assorted charts
  • Power: 110/120V 50/60Hz
  • (8) "AA" Battery back-up. Assures normal operation during power interruptions.
  • 12 volt operation. Allows use in vehicular or marine operations
  • Sensor: 4" long submersible stainless steel probe with 15' cable.  The temperature sensor is an electronic digital proprietary design for precision and very high interference immunity. It utilizes the standard RCA connector. The sensor cable may be extended with an extension cable available from TIPTEMP.
  • Convenient fold-down handle
  • Free standing or wall mounted (using existing keyhole slots located on back of case)
  • Durable poly-carbonate Case cover and handle
  • Chart Recorder 110/120V 50/60Hz Celsius
  • 2 Pen Cartridges
  • Sensor: 4" SS Probe with 15' Cable
  • Assortment of 60 charts
  • Instructions
  • Expert Technical Support
Note: (8) AA Batteries sold separately.
