PTM 3010

(0)No Reviews yet
Provided: Each

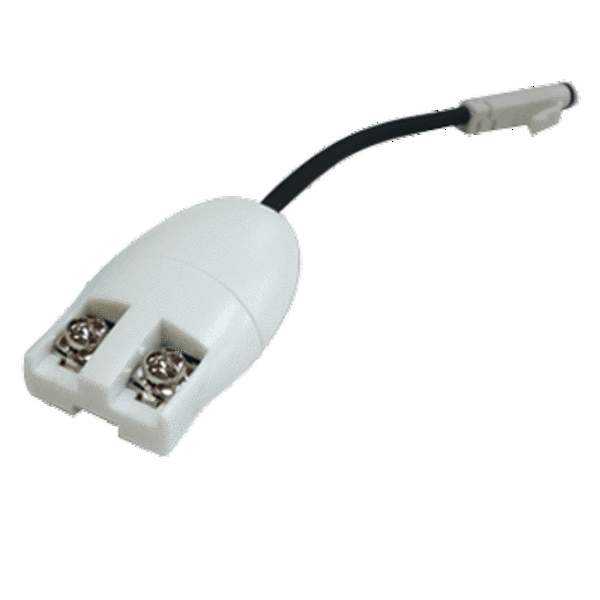

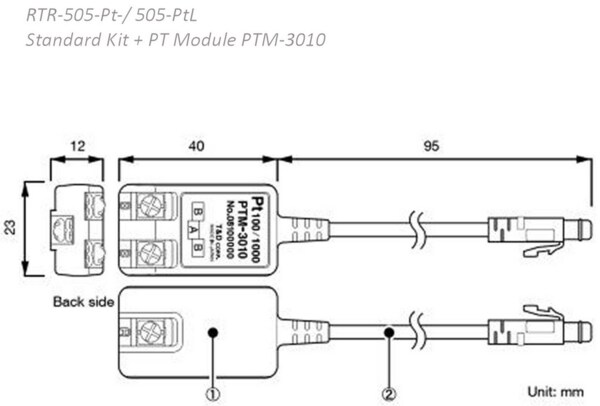

PT Module For RTR-505-PtL
Connects RTD Sensor to RTR-505-PtL
Compatible with 2-3-4 wire RTD's
2" / 52mm cable length

Notable Features

PT Module For RTR-505-PtL with High Accuracy.
Compatible Sensors: Pt100(3-wire), Pt1000(3-wire), (In case of a 4 wire sensor, one will be left unused)
  • Compatible Sensors Pt100 (3-wire, 4-wire), Pt1000 (3-wire, 4-wire)
  • Operating Environment Temperature: -40 to 80°C
    Humidity: 90%RH or less (no condensation)
  • Sensor Connection Screw Clamp Terminal Block: 3-Terminal
    Square Washer (3-M3.5)
  • Cable Length 52mm
Sensor Wire Length: 52mm
Weight: .05
Special Notes: Measurement Resolution .1°C, Accuracy .5°C, Can be extended by 3 meters with extension cable TR-3C30
Storage Conditions: Operating Temp: -40°C ~ 80°C, 90%RH or less (No Condensation)
  • 1 TADACC019 Replacement PT Module for RTR-505-PtL
