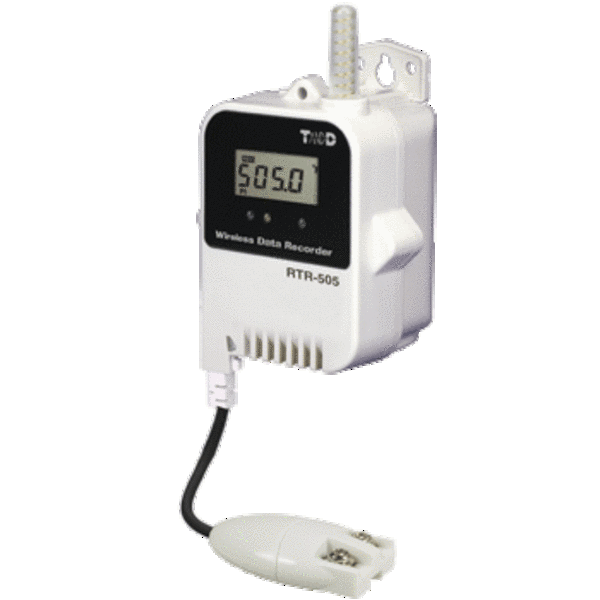

Wireless RTD Temperature Logger w/Large Battery Compartment
The TandD RTR-505-PtL Wireless Temperature Datalogger supports Pt100 (3-wire) and Pt1000 (3-wire) sensors. The RTR-505-Pt has a measurement range of -326 to 1112°F (-199 to 600°C) and ships complete with the PTM-3010 input module.
16,000 readings means you can record every one second and still log four and a half hours of data; or at a recording interval of 60 minutes you can keep logging for 666 days. By using the software the recording interval for a Remote Unit can be set to one out of fifteen choices (1 second to 60 minutes).
Select the Recording Mode from Endless or One Time. When using Endless Mode, upon reaching the logging capacity the oldest data is overwritten and recording continues. When using One Time, upon reaching logging capacity recording automatically stops.
The Data Loggers are outfitted with a long lasting Lithium Battery (LS14250). At normal temperature, if recorded data is downloaded once a day or if monitoring is carried out once every ten minutes, the estimated battery life will be about ten months. Model names which include "L" are designed with a large capacity battery pack. Under the same conditions, L-type models will continue for about four years without the need to change the battery.
The Data Loggers in the RTR-500 Series only function as Remote Units. They require one of the following: Base Unit or Hand Held with which to carry out wireless communication. Battery is NOT INCLUDED
|Temperature Sensing Range:||-326°F ~ 1112°F (-199°C ~ 600°C)|
|Temperature Accuracy:||+/- 1°F (+/- 0.5°C) typical|
|Temperature Scale:||°F or °C|
|Battery Life:||Approx. 4 years|
|Sampling Rate:||1 second to 1 hour|
|Special Notes:||Operating temp: -22°F to 176°F (-30°C to 80°C), Wireless transmission range: 150meters (500ft) if unobstructed, PTM-3010 input module included|
|Data Points:||16000 readings|
|Recording Rate:||Select from 15 choices: 1, 2, 5, 10, 15, 20, 30 sec. or 1, 2, 5, 10, 15, 20, 30, 60 min.|
- Data Logger
- Long Life Battery Compartment ( Battery Sold Separately )
- Instruction Manual
- Expert Technical Support
