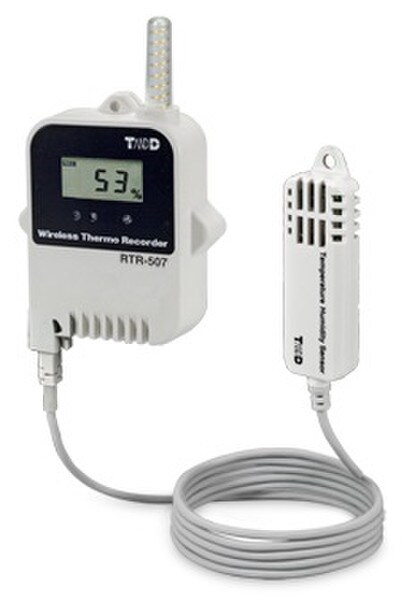

RTR-507S High Accuracy Temp/Humidity Logger
This temperature/humidity recorder is fully compatible with T&D™s popular 500 series of wireless data loggers and collectors and records over a wider range, measuring temperature from -25°C to +70°C (-13°F to +158°F) as well as relative humidity levels from 0-99% RH. Temperature recordings are made at a high 0.3°C accuracy, and humidity readings at a 2.5% RH accuracy. Users can also calibrate using an internal adjustment function, making logging even easier. As with all of the RTR-500 product line, these new solutions enable automatic error-free data downloads for convenient data collection and retrieval.
The Data Loggers in the RTR-500 Series only function as Remote Units. They require one of the following: Base Unit or Hand Held with which to carry out wireless communication.
The Data Loggers in the RTR-500 Series only function as Remote Units. They require one of the following: Base Unit or Hand Held with which to carry out wireless communication.
| Type of Sensor: | Thermistor/Polymer Resistance |
| Temperature Sensing Range: | -13°F ~ 158°F (-25°C ~ 70°C) |
| Temperature Accuracy: | ±0.3°C (at 10 to 40°C), ±0.5°C (at all other temperatures) |
| Temperature Resolution: | 0.1° |
| Temperature Scale: | °F or °C |
| Sensor Wire Length: | 1 meter |
| Humidity Range: | 0 ~ 99% RH |
| Humidity Accuracy: | ±2.5% (at 15°C to 35°C, 30 to 80%RH) |
| Humidity Resolution: | 0.1% |
| Dimensions: | H:62mm × W:47mm × D:19mm |
| Weight: | 50g |
| Calibration Available: | Yes (purchased separately) |
| Battery Life: | 10 Months - depending sampling rate |
| Battery Backup: | Yes - Must Purchase Option Power Supply |
| IP Rating: | IP64 |
| Special Notes: | Response Time ( 90% ): About 7 min. |
| Data Points: | 8,000 |
| Recording Rate: | Select from 15 choices: 1, 2, 5, 10, 15, 20, 30 sec. or 1, 2, 5, 10, 15, 20, 30, 60 min. |
Always discuss Wireless communicating devices with your IT Department.
