RTD Temperature Sensor 100Ω

(0)No Reviews yet
-58°F ~ 500°F (-50°C ~ 260°C)

Notable Features

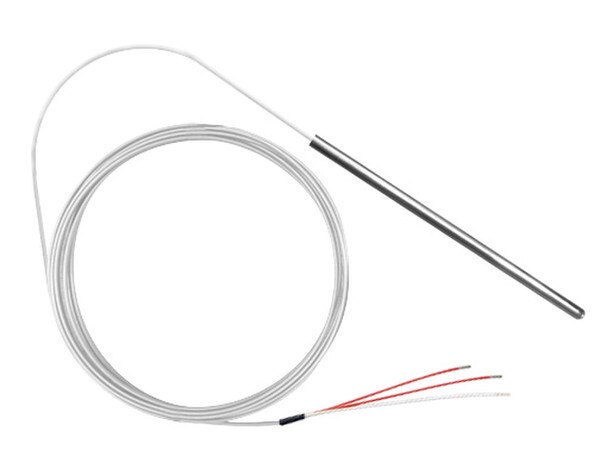

RTD15-100L-SS-14-3-TT-120 RTD 100 OHM assembly, 3 wire, stainless steel sheath, 1/4" dia x3" long with 10ft teflon insulated lead wire.Internal wires to be 2 x Red, 1 x White white overall. NO TRANSITION TO BE FITTED
Type of Sensor: 100Ω RTD Sensor
Temperature Sensing Range: -58°F ~ 500°F (-50°C ~ 260°C)
Sensor Wire Length: 120"
Weight: .56
Calibration Available: Yes (purchased separately)
Thermocouple Type: RTD
Sheath Material: Stainless Steel
Sheath Diameter: 0.250
Sheath Length: 3"
Wire Material: Teflon
Wire Gauge: 24
Wire Length: 120"
Max Temp: 500°F (260°C)
Number of Measuring Points: 1
  • (1)  RTD Sensor  RTD15-100L-SS-14-3-TT-120
  • Expert Technical Support
