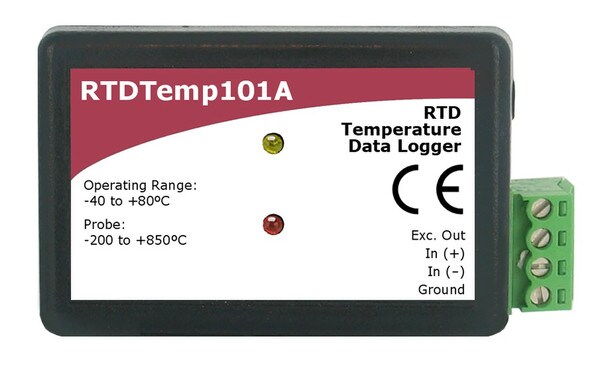

RTD Temperature Data Logger

(0)No Reviews yet
$219.00
QuantityPrice
SKU: MATREC134
Provided: Each
-200°C ~ 850°C (-328°F ~ 1562°F)
Requires 3 or 4 Wire 100Ω RTD Sensor
  • Battery Life: 10 years at a 15 minute reading rate
  • Data Logger Operating Environment: –40°C to +80°C (-40°F to +176°F)
  • External RTD Sensor: -200°C ~ 850°C (-328°F ~ 1562°F)
  • Resolution: 0.001°C
  • Accuracy: +0.05°C
Requires Software & Cable MATREC079

Notable Features


The MATREC134 offers a 10 year battery life, a multiple start/stop function, ultra-high speed download capability, 670,000 reading storage capacity, optional memory wrap, precision RTD sensing element, battery life indicator, optional password protection, programmable high-low alarms and more. Using the included free software, starting, stopping and downloading from the data logger is simple and easy. Graphical, tabular and summary data is provided for analysis and data can be viewed in °C, °F, K or °R. The data can also be automatically exported to Excel® for further calculations. We offer free firmware upgrades for the life of the product so that data loggers already deployed in the field can grow with new technological developments. Units do not need to be returned to the factory for upgrades. The user can do this automatically from any PC.
  • Part number MATREC134
  • Sensor: External 100Ω RTD
  • Range: –200°C to +850°C (-392°F to +1562°F)
  • Resolution: 0.001°C
  • Accuracy: +0.05°C
  • Memory:
  • 670,000 readings software configurable memory wrap
  • 333,000 readings in multiple start/stop mode
  • Sample Rate: 1 reading every second to 1 reading every 24 hours
  • LED Indicator: Red & Green
  • Alarm: Yes
  • Baud Rate: 115,200
  • Battery Life: 10 years at a 15 minute reading rate
  • Operating Environment: –40°C to +80°C (-40°F to +176°F), 0 to 95%RH non–condensing
  • Material: ABS plastic
  • Dimensions: 1.4” x 2.2” x 0.6” (36mm x 56mm x 16mm)
  • RTD Temperature Data Logger
  • Battery
  • Software (Free Download)
  • Expert Technical Support
  • Requires RTD Temperature Sensor
  • Requires Software & Cable MATREC079
