"K" Duplex Thermocouple Fast Response

Name: TIPTCK056P02: K Duplex Thermocouple
SKU: TIPTCK056P02
Price: 89.8 USD
Availability: InStock

(0)No Reviews yet

$89.80

Quantity	Price
2 – 2	$89.80
3 – 5	$85.31
6 – 9	$80.82
10 – 49	$76.33
50 – 99	$71.84
100 +	$67.35

SKU: TIPTCK056P02

Provided: Each

Miniature Dual-Junction Probe for Fast Response
MTC10-KK-SS-116-G-18

Quick Specs

🌡 Temperature Range: Up to 920 °C / 1690 °F
🎯 Accuracy: ± 4 °F (± 2 °C) typical
🔩 Sheath Material: 316 Stainless Steel
📏 Sheath Diameter: 0.062 in (1/16 in)
📐 Sheath Length: 18 in
⚡ Junction Type: Common Grounded (2 Measuring Points)
🔌 Connector Style: Mini Plug & Jack
⏱ Response Time: Approx. 1.75 seconds
⚖️ Weight: 0.1 lb
📋 Calibration: Available (purchased separately)
🔥 Max Operating Temperature: 1690 °F (920 °C)

📦 Browse the related products below to find compatible connectors, extension wire, and instrumentation that integrate seamlessly with this thermocouple.

🛒 Add to Cart Now or 📞 Call 1-800-TIP-TEMP for expert guidance.

Quantity

Notable Features

Back

MTC10-KK-SS-116-G-18

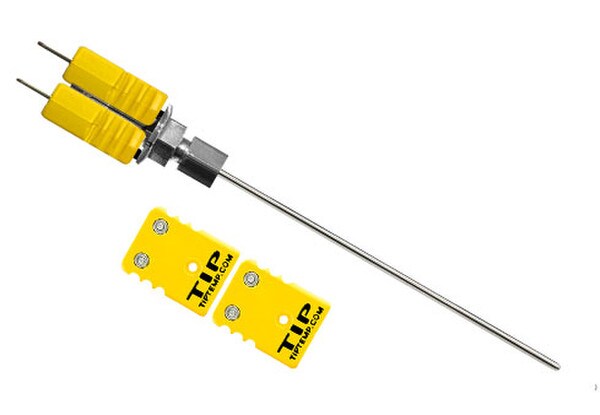

Mini Quick Disconnect Duplex T/C Type K, 316SS Material, 1/16" Diameter Grounded Junction, 18" Sheath Length.

Key Features

✅ Duplex Type K design provides dual measurement points
✅ Mini quick-disconnect for easy replacement and installation
✅ Common grounded junction for fast thermal response
✅ Durable 316 SS sheath handles harsh industrial use
✅ Accurate and reliable for continuous monitoring
✅ Supports high-temperature applications to 1690 °F

Back

Temperature Sensing Range:	Based on sheath Diameter, MAX: 920°C / 1690°F
Temperature Accuracy:	+/- 4°F (+/- 2°C) typical
Weight:	.1
Calibration Available:	Yes (purchased separately)
Thermocouple Type:	Thermocouple
Sheath Material:	Stainless Steel
Sheath Diameter:	0.062
Sheath Length:	18"
Plug Size:	Mini
Jack Size:	Mini
Max Temp:	1690°F (920°C)
Response Time:	Approx: 1.75 seconds
Number of Measuring Points:	2
