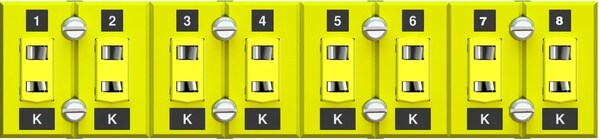

🟡 "K" , 2 Pole 8 Position Mini Stripanel

(0)No Reviews yet
$70.00
QuantityPrice
1 – 9$70.00
10 – 24$66.50
25 – 49$63.00
50 – 74$59.50
75 – 99$57.75
100 +$56.00
SKU: MARACC068
Provided: Each

Compact panel-mount terminal strip for organizing multiple Type K thermocouple connections

──────────────────────────

Quick Specs

🌡 Thermocouple Type: 🟡 K
🔌 Configuration: 2-Pole, 8-Position (8 Circuits)
🌡 Max Continuous Temp: 400°F (205°C)
🔥 Max Intermittent Temp: 500°F (260°C)
📐 Panel Dimensions: 5.5" W × 1.25" H
✂️ Panel Cutout: 5.38" W × 1.0" H
🧩 Mounting Style: Panel mount (Stripanel)
📦 Provided: Each

──────────────────────────

📦 Browse the related products below to explore compatible thermocouple wire, plugs, and accessories.
🛒 Add to Cart Now or 📞 Call 1-800-TIP-TEMP (847-8367) for expert guidance.

Notable Features

Back

✅ Organizes up to 8 Type K thermocouple circuits
✅ Miniature format saves valuable panel space
✅ Designed for clean, professional wiring layouts
✅ Rated for continuous and intermittent high-temperature use
✅ Ideal for control panels, ovens, furnaces, and test systems

──────────────────────────

"K" Type Miniature Jack Stripanels, 8 circuits, "K" Thermocouple Calibration includes identification for each circuit numbered, lettered and color coded to ANSI standards. withstands ambient temperatures to 400°F (205°C) continuous and 500°F (260°C) intermittent.

>>>>> View Catalog Page For Mini-Stripanels<<<<<

Back

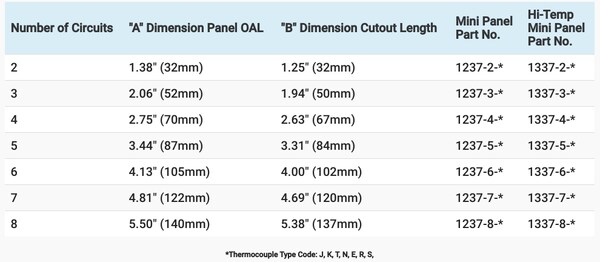

View Catalog Page for Mini Stripanel
