Round Pin Plug TC10-K-SS-18-G-12

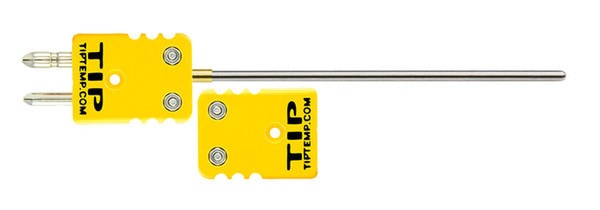

TC10-K-SS-18-G-12 Thermocouple plug & jack style type "K" calibration, 316SS sheath material 1/8" diameter, grounded junction, 12" long sheath
Special Order: Terms & Conditions Apply.
| Temperature Sensing Range: | -328 ~ 2000°F (-200 ~ 1093°C) |
| Temperature Accuracy: | +/- 4°F (+/- 2°C) typical |
| Thermocouple Type: | Thermocouple |
| Sheath Material: | Stainless Steel |
| Sheath Diameter: | 0.125 |
| Sheath Length: | 12" |
| Plug Size: | Large Plug Round Pin |
| Jack Size: | Large Jack |
| Time Constant: | 0.4 Seconds |
| Response Time: | 2.0 Seconds |
- “K” type Thermocouple, 1/8 diameter, 12" Length
