🟡 Type K 6-Circuit Jack Panel

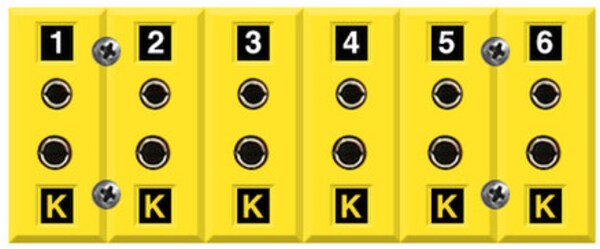

This large Type K thermocouple jack panel provides a centralized connection point for six independent Type K thermocouple circuits. The full-size 2-pole jack configuration provides convenient sensor-to-instrument connections while maintaining proper Type K thermocouple compatibility. Designed for panel mounting, it is well suited for test equipment, process monitoring, laboratories, and multi-point temperature systems.
CUSTOMIZE this Strippanel:
- Give Strippanel No. [e.g. 1032]
- Specify Number of circuits [e.g. 1032-6]
- Specify Thermocouple Type by Code [e.g. 1032-6-K]
- For vertical rows add suffix "V" [e.g. 1032-6-T-V]
- For Hi-Temp Stripanel [e.g. 1132-6-K]
- Avaialability: J,K,T,N,E,R,S,U, also "C"
- Gold plated inserts are available. Use suffix "G" [e.g. 1032-6-K-G]

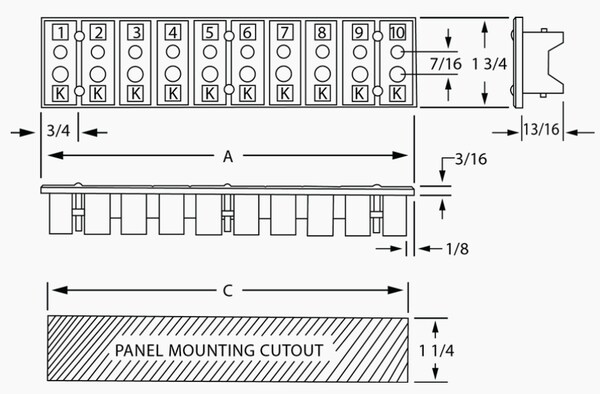

| Number of Circuits | "A" Dimension Panel Length | "C" Dimension Cutout Length | Full Size 2-Pole Panel Part No. | Hi-Temp Full Size 2-Pole Panel Part No. |
|---|---|---|---|---|
| 2 | 1 1/2" | 1 5/16" | 1032-2-K | 1132-2-K |
| 3 | 2 1/4" | 2 1/16" | 1032-3-K | 1132-3-K |
| 4 | 3" | 2 13/16" | 1032-4-K | 1132-4-K |
| 5 | 3 3/4" | 3 9/16" (84mm) | 1032-5-K | 1132-5-K |
| 6 | 4 1/2" | 4 5/16" | 1032-6-K | 1132-6-K |
| 7 | 5 1/4" | 5 1/16" | 1032-7-K | 1132-7-K |
| 8 | 6" | 5 13/16" | 1032-8-K | 1132-8-K |
| 9 | 6 3/4" | 6 9/16" | 1032-9-K | 1132-9-K |
| 10 | 7 1/2" | 7 5/16" | 1032-10-K | 1132-10-K |
| 11 | 8 1/4" | 8 1/16" | 1032-11-K | 1132-11-K |
| 12 | 9" | 8 13/16" | 1032-12-K | 1132-12-K |
- 6 Circuit Thermocouple Jack Panel Large
- Expert Technical Support
Compliance & Risk Mitigation
🟡 Maintains Type K alloy compatibility
🧮 Organizes six independent TC circuits
🔌 Helps reduce connection wiring errors
📋 Supports clear circuit identification
🌡 Supports temperature signal integrity
🛠 Simplifies service and sensor changes
Use only with compatible Type K thermocouples, extension wire, and connectors. Verify polarity, panel cutout dimensions, wiring, mounting, and operating temperature before installation. Do not exceed the 400°F (205°C) maximum temperature rating.
──────────────────────────
