🟡 Type "K" Duplex Thermocouple – 6"

(0)No Reviews yet
$75.00
QuantityPrice
2 – 2$75.00
3 – 5$71.25
6 – 9$67.50
10 – 49$63.75
50 – 99$60.00
100 +$56.25
SKU: TIPTCK195P01
Provided: Each

Quick disconnect duplex probe with grounded junction

──────────────────────────

Quick Specs

🌡 Thermocouple Type: 🟡 K (Duplex – Dual Elements)
🌡 Max Temperature: 1960°F (1070°C)

🎯 Accuracy: +/- 4°F/2°C (varies with temperature range)
🔩 Sheath Material: Stainless Steel
📐 Sheath Diameter: 1/8"
📏 Sheath Length: 6"
⚡ Junction Type: Grounded (Fast Response)
🔌 Connection: Quick Disconnect
🧪 Configuration: Type KK Duplex
🏷️ Model: TC11-KK-SS-18-G-06
🏷️ SKU: TIPTCK195P01

──────────────────────────

📦 Browse the related products below, explore compatible thermocouple connectors, extension wire, and instrumentation that integrate with this probe.
🛒 Add to Cart Now or 📞 Call 1-800-TIP-TEMP for expert guidance.

Notable Features

2℃ AccuracyBusinessCalibrationMade in the USANewSparePartSpecial OrderThermocoupleTT Verified
Back

✅ Duplex Type K design for dual temperature measurement
✅ Grounded junction for fast response time
✅ Stainless steel sheath for durability
✅ Compact 1/8" diameter for tight installations
✅ Quick disconnect for easy installation and replacement
✅ Ideal for industrial process and equipment monitoring

──────────────────────────

TC11-KK-SS-18-G-06

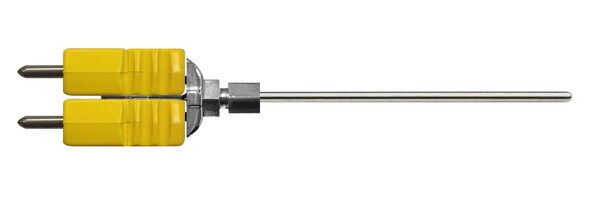

Quick disconnect Type "K" Thermocouple Duplex with standard/large plug, 316 Stainless Steel Sheath, 1/8 diameter, grounded junction, 6" sheath length.

Back

Type K Duplex Thermocouple 6" length

Expert Technical Support

Optional mating jack and extension wire are available.

Back
