Transition Style K Thermocouple

(0)No Reviews yet
$135.45
QuantityPrice
1 – 9$135.45
10 – 24$128.68
25 – 49$121.91
50 – 74$115.13
75 – 99$111.75
100 +$108.36
SKU: TIPTCK330
TC16-K-446SS-14-U-72-GG/SSOB-72-MM-CC
Maximum Temperature: 2100°F

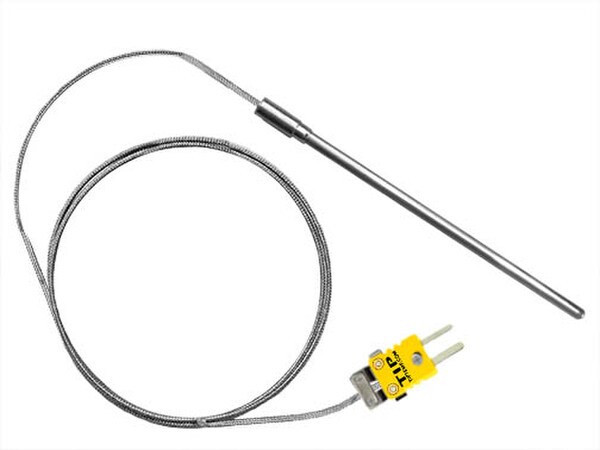

Type K, 72" Long 446 Stainless Steel Sheath, 1/4" OD Ungrounded Junction, 72" Fiberglass Leads with Stainless Steel Over-braid. Fitted with Miniature Plug and Cable Clamp.

Notable Features

Details

Transition style t/c type K 446ss,  1/4" ungrounded junction 72" long with 72" glass fiber lead with stainless steel overbraid with miniature plug and cable clamp fitted.

Specs

Temperature Sensing Range: Max Temp: 2100°F
Temperature Accuracy: +/- 4°F (+/- 2°C) typical
Thermocouple Type: Thermocouple
Sheath Material: 446 Stainless Steel
Sheath Diameter: 0.250
Sheath Length: 72"
Transition Diameter: .375"
Transition Length: 3/4" Length
Wire Material: SSOB Fiberglass
Wire Gauge: 24 Ga.
Wire Length: 72"
Plug Size: Miniature / Flat Pin
